Description
Parameters
| Features | Applications |
| Low back reflection loss and Low PDL | Telecommunication system |
| High precision attenuation value | Passive optical networks |
| Precision control of attenuation range | Optical power receivers protection |
| Wide attenuation range | Fiber optical sensor |
| Precision ceramic ferrule | Test equipment |
| Attenuates Fiber Optic Signal | |
| Protects Equipment From Excess Optical Signals | |
| Definable Attenuation from 1dB to 20dB | |
| Available with FC,SC,ST,LC,MU types |
| Parameter | Specification | |
| Operating Wavelength（nm） | 1310nm or 1550nm | |
| Attenuation Range（dB） | 1~20 | |
| Return Loss（dB） | PC:≥50 | APC:≥60 |
| Attenuation Tolerance（dB） | ±0.5(1-10dB) | ±0.5(11-20dB) |
| Polarization Dependent Loss(dB) | ＜0.1 | |
| Maximum Optical Input Power(mW) | 200 | |
| Operating Temperature(℃) | -40~+75 | |
| Store Temperature(℃) | -40~+80 | |
| Mating Durability(cycles) | ＞1000 | |

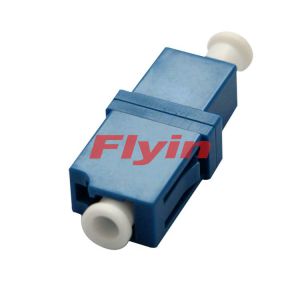

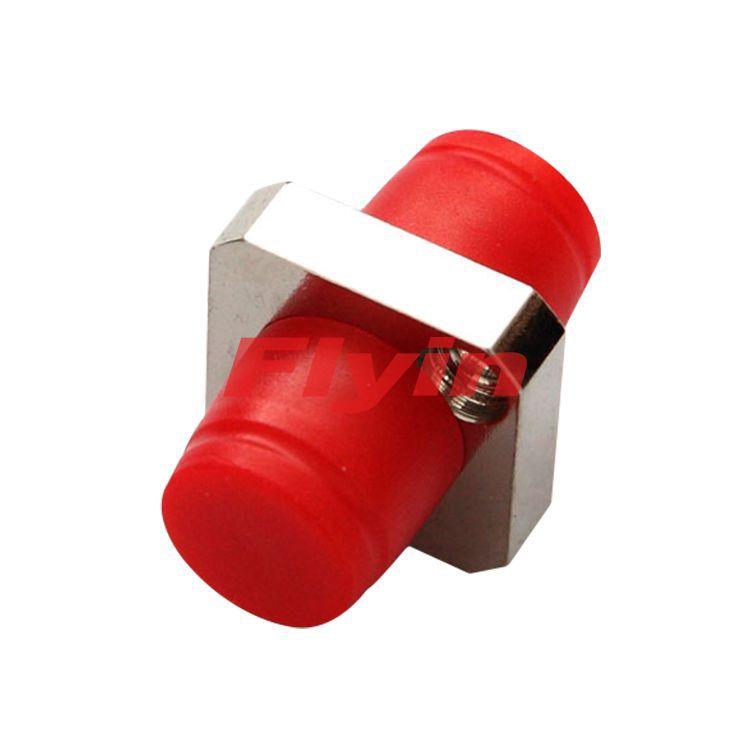

Flyin Optronics’ fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level. Adaptor type fixed attenuator are available for singlemode LC, SC, ST, FC types, select from 1310nm or 1550nm, all the products are rigorously tested to meet the needs of optic network, compliance with ROHS standard.
| Connector Type： |
LC SC FC ST |
| Wavelength： |
1310nm 1550nm |
| Attenuation Level： |
01dB 02dB 03dB 04dB 05dB 06dB 07dB 08dB 09dB 10dB 11dB 12dB 13dB 14dB 15dB 16dB 17dB 18dB 19dB 20dB |
| Features | Applications |
| Low back reflection loss and Low PDL | Telecommunication system |
| High precision attenuation value | Passive optical networks |
| Precision control of attenuation range | Optical power receivers protection |
| Wide attenuation range | Fiber optical sensor |
| Precision ceramic ferrule | Test equipment |
| Attenuates Fiber Optic Signal | |
| Protects Equipment From Excess Optical Signals | |
| Definable Attenuation from 1dB to 20dB | |
| Available with FC,SC,ST,LC,MU types |
| Parameter | Specification | |
| Operating Wavelength（nm） | 1310nm or 1550nm | |
| Attenuation Range（dB） | 1~20 | |
| Return Loss（dB） | PC:≥50 | APC:≥60 |
| Attenuation Tolerance（dB） | ±0.5(1-10dB) | ±0.5(11-20dB) |
| Polarization Dependent Loss(dB) | ＜0.1 | |
| Maximum Optical Input Power(mW) | 200 | |
| Operating Temperature(℃) | -40~+75 | |
| Store Temperature(℃) | -40~+80 | |
| Mating Durability(cycles) | ＞1000 | |
