Description
Parameters
| Features | Applications |
| Simplex, duplex versions available | LAN, WAN, CATV |
| Phosphor bronze or Zirconia sleeve | FTTX, FTTH |
| Low insertion loss and back reflection loss | Telecommunication networks |
| High precision alignment | Fiber Communication Systems |
| Compact design | Data Processing Networks |
| Comply to ROHS requirement | Industrial, Mechanical and Military |
| Parameter | SM | MM | ||
| Polish | PC | UPC | APC | PC |
| Wire Diameter（mm） | 0.9mm,2.0mm,3.0mm | |||
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Interchangeability（dB） | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature（℃） | -45~+80 | |||

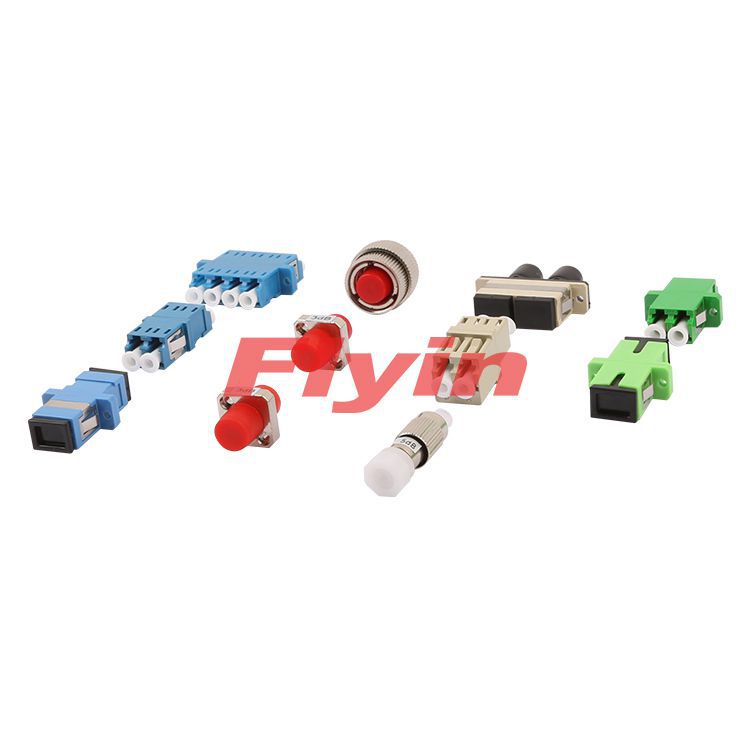

Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors of the same type, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO ect, widely used in optical fiber communications equipment, measuring appliance and so on, the performance stably reliable.
| Mode： |
SM MM |
| Fiber Numbers： |
Single Core Double Core Four Core Eight Core |
| Polish： |
PC UPC APC |
| Appearance： |
Square Circular Rhombus Rectangular Auriculate Anotia Other |
| Sleeve Material： |
Ceramic |
| Color： |
Blue Beige Green Curtom |
| Connector： |
LC SC FC ST D4 DIN MU MPO MTRJ E2000 |
| Features | Applications |
| Simplex, duplex versions available | LAN, WAN, CATV |
| Phosphor bronze or Zirconia sleeve | FTTX, FTTH |
| Low insertion loss and back reflection loss | Telecommunication networks |
| High precision alignment | Fiber Communication Systems |
| Compact design | Data Processing Networks |
| Comply to ROHS requirement | Industrial, Mechanical and Military |
| Parameter | SM | MM | ||
| Polish | PC | UPC | APC | PC |
| Wire Diameter（mm） | 0.9mm,2.0mm,3.0mm | |||
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Interchangeability（dB） | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature（℃） | -45~+80 | |||
