Description
Parameters
| Features | Applications |
| Low?Insertion?Loss | CATV?&?FTTH |
| Ease?of?installation | Telecommunication?networks |
| Low?cost?&?Reliability | Local?area?networks?(LAN) |
| Ease?of?use | Wide?area?networks?(WAN) |
| Low?environmental?sensitivity??????????????????? | Premise?installations????????? |
| High?return?loss | Data?processing?networks |
| Video?and?military?active?device?termination | |
| Optical?Distribution?Frame | |
| Optical?Network?Equipments |
| Item | Technical?Parameters | ||
| Type | LC/UPC | SC/UPC | FC/UPC |
| Applicable?for | Indoor?Cable??0.9mm | 2.0mm,3.0mm?or?FTTH?ptachcord | |
| Optic?fiber?diameter | 125um(G657A?or?G657A2) | 125um(G657A2?or?specify) | |
| Tight?buffer?diameter | 250um | ||
| Fiber?mode | Single?mode | ||
| Operation?time | About?100S(no?fiber?cut) | ||
| Insert?Loss | ≤0.3dB | ||
| Return?Loss | ＞50dB | ||
| Fastening?strength?of?naked?fiber | ＞4N | >5N | |
| Fastening?strength?of?naked?holder | ＞8N | >10N | |
| Tensile?strength | ＞10N | >50 | |
| Using?temperature | -40～75℃ | ||
| On-line?tensile?strength(20N) | ΔIL≤0.5dBΔRL≤5dB | ||
| Mechanical?durability(500times) | ΔIL≤0.5dBΔRL≤5dB | ||
| Drop-off?test(drop-off?height?4M,once?per?direction) | ΔIL≤0.5dBΔRL≤5dB | ||

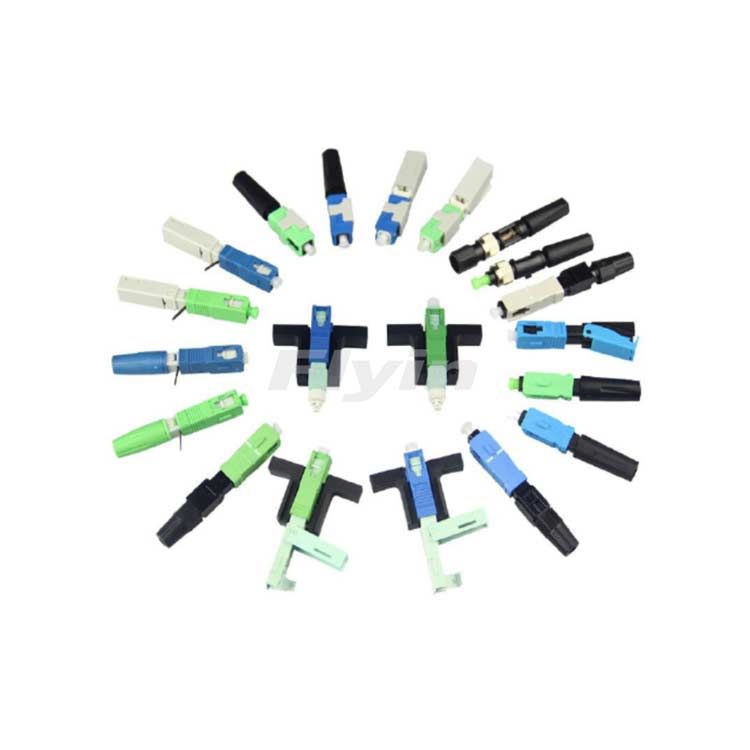

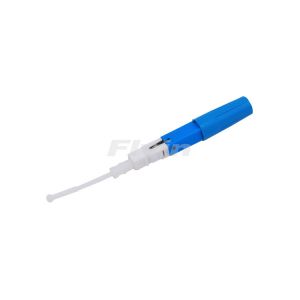

Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high efficiency for installation. The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adopted fiber preinstalled structure, and convenient for field installation.
| Features | Applications |
| Low?Insertion?Loss | CATV?&?FTTH |
| Ease?of?installation | Telecommunication?networks |
| Low?cost?&?Reliability | Local?area?networks?(LAN) |
| Ease?of?use | Wide?area?networks?(WAN) |
| Low?environmental?sensitivity??????????????????? | Premise?installations????????? |
| High?return?loss | Data?processing?networks |
| Video?and?military?active?device?termination | |
| Optical?Distribution?Frame | |
| Optical?Network?Equipments |
| Item | Technical?Parameters | ||
| Type | LC/UPC | SC/UPC | FC/UPC |
| Applicable?for | Indoor?Cable??0.9mm | 2.0mm,3.0mm?or?FTTH?ptachcord | |
| Optic?fiber?diameter | 125um(G657A?or?G657A2) | 125um(G657A2?or?specify) | |
| Tight?buffer?diameter | 250um | ||
| Fiber?mode | Single?mode | ||
| Operation?time | About?100S(no?fiber?cut) | ||
| Insert?Loss | ≤0.3dB | ||
| Return?Loss | ＞50dB | ||
| Fastening?strength?of?naked?fiber | ＞4N | >5N | |
| Fastening?strength?of?naked?holder | ＞8N | >10N | |
| Tensile?strength | ＞10N | >50 | |
| Using?temperature | -40～75℃ | ||
| On-line?tensile?strength(20N) | ΔIL≤0.5dBΔRL≤5dB | ||
| Mechanical?durability(500times) | ΔIL≤0.5dBΔRL≤5dB | ||
| Drop-off?test(drop-off?height?4M,once?per?direction) | ΔIL≤0.5dBΔRL≤5dB | ||
