Description
Parameters
| Fiber?type | Multimode?50/125 | Fiber?connector??????????????? | LC/UPC |
| Return?loss | MM≥20dB | Insertion?loss | MM≤0.3dB |
| Insert-pull?test | PVC?(magenta)???????? | Insert-pull?test??????????????????????????????????? | 500times,?IL<0.5dB??????????????? |
| Operation?temperature?? | -20?to?70°C(-4?to?158°F) | Dimensions??????????????????????? | 53x14x12mm??????????????????? |

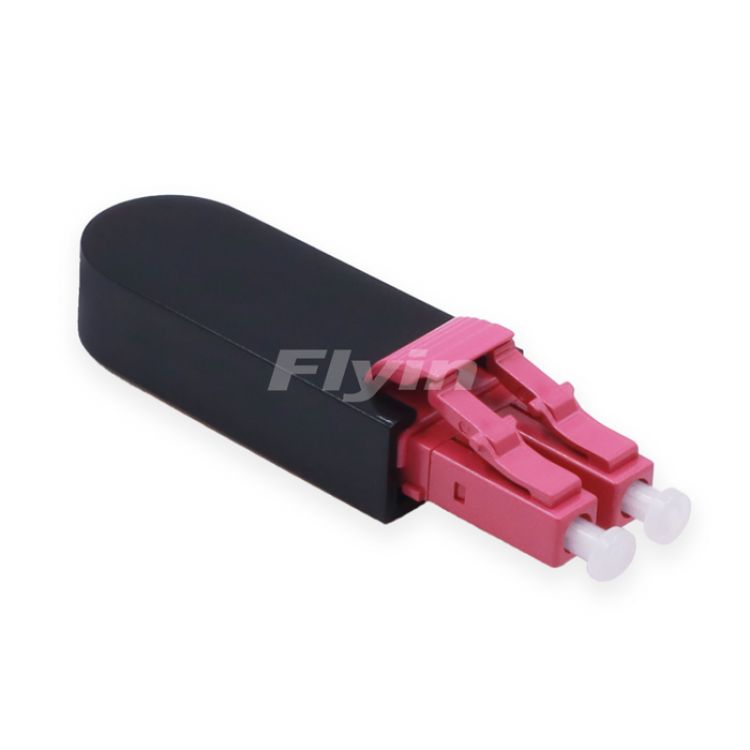

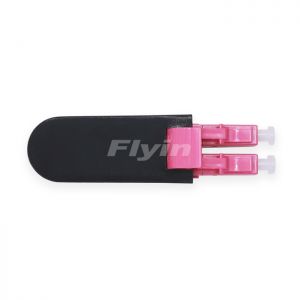

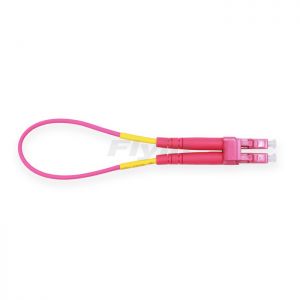

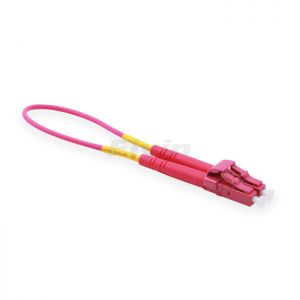

LC Duplex PVC OM4 Multimode Fiber Loopback Module Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations.For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
| Fiber?type | Multimode?50/125 | Fiber?connector??????????????? | LC/UPC |
| Return?loss | MM≥20dB | Insertion?loss | MM≤0.3dB |
| Insert-pull?test | PVC?(magenta)???????? | Insert-pull?test??????????????????????????????????? | 500times,?IL<0.5dB??????????????? |
| Operation?temperature?? | -20?to?70°C(-4?to?158°F) | Dimensions??????????????????????? | 53x14x12mm??????????????????? |
