Description
Parameters
| Features | Application |
| Hot Pluggable QSFP28 form factor. | 100G Ethernet. |
| Stability and reliability. | Date center. |
| Low power consumption. | InfiniBand Interconnects. |

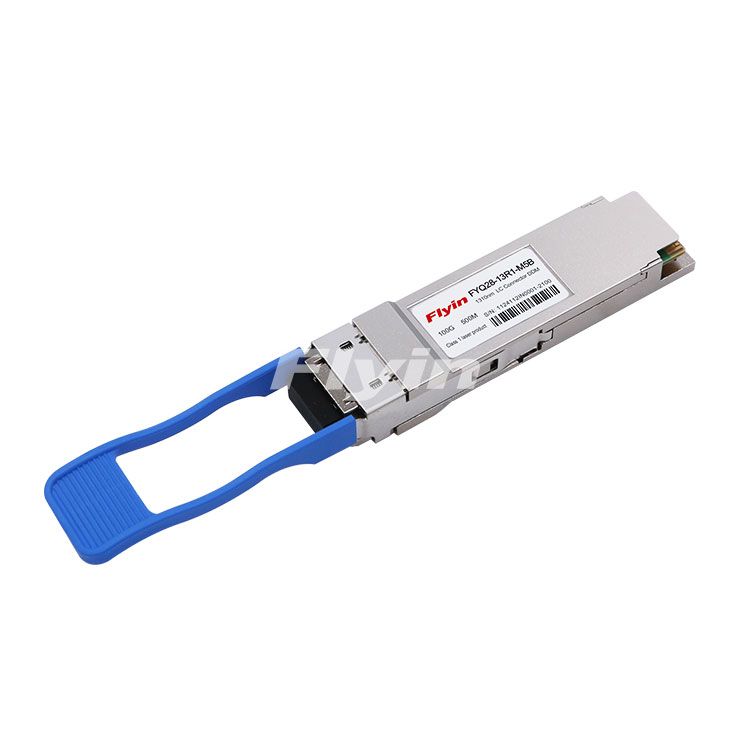

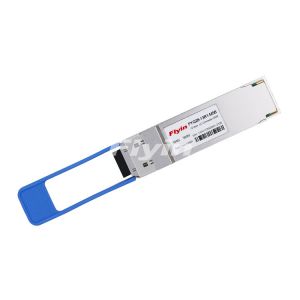

100G-QSFP28 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ28-85R4-M1B | 100Gb/s | 850nm | 100M | -8~2dBm | ≤-10.3dBm | VCSEL | MPO |
FYQ28-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-30B | 100Gb/s | LWDM4 | 30KM | -2~4dBm | ≤-21dBm | EML | LC |
FYQ28-4LR4-40B | 100Gb/s | LWDM4 | 40KM | -2~4dBm | ≤-21dBm | EML | LC |
FYQ28-4LR4-80B | 100Gb/s | LWDM4 | 80KM | 2~6dBm | <-28dBm | EML | LC |
100G-CFP/CFP2/CFP4 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYCP-85AA-M1B | 100Gb/s | 850nm | 100M | -8~1dBm | <-5.4dBm | VCSEL | MPO |
FYCP-13AA-10B | 100Gb/s | 1310nm | 10KM | -2.5~2.9dBm | ≤-10.3dBm | DFB | LC |
FYCP-4LAA-40B | 100Gb/s | LWDM4 | 40KM | -2.9~2.9dBm | ≤-21dBm | DFB | LC |
FYCP2-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-8.6dBm | DFB | LC |
FYCP4-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-8.6dBm | DFB | LC |
Flyin Group's optical transceiver module series are easy to install and suitable to be used in various applications, such as data centers, high-performance computing networks,enterprise core and distribution layer applications.
| Features | Application |
| Hot Pluggable QSFP28 form factor. | 100G Ethernet. |
| Stability and reliability. | Date center. |
| Low power consumption. | InfiniBand Interconnects. |
100G-QSFP28 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ28-85R4-M1B | 100Gb/s | 850nm | 100M | -8~2dBm | ≤-10.3dBm | VCSEL | MPO |
FYQ28-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-10.6dBm | DML | LC |
FYQ28-4LR4-30B | 100Gb/s | LWDM4 | 30KM | -2~4dBm | ≤-21dBm | EML | LC |
FYQ28-4LR4-40B | 100Gb/s | LWDM4 | 40KM | -2~4dBm | ≤-21dBm | EML | LC |
FYQ28-4LR4-80B | 100Gb/s | LWDM4 | 80KM | 2~6dBm | <-28dBm | EML | LC |
100G-CFP/CFP2/CFP4 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYCP-85AA-M1B | 100Gb/s | 850nm | 100M | -8~1dBm | <-5.4dBm | VCSEL | MPO |
FYCP-13AA-10B | 100Gb/s | 1310nm | 10KM | -2.5~2.9dBm | ≤-10.3dBm | DFB | LC |
FYCP-4LAA-40B | 100Gb/s | LWDM4 | 40KM | -2.9~2.9dBm | ≤-21dBm | DFB | LC |
FYCP2-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-8.6dBm | DFB | LC |
FYCP4-4LR4-10B | 100Gb/s | LWDM4 | 10KM | -4~4dBm | ≤-8.6dBm | DFB | LC |
