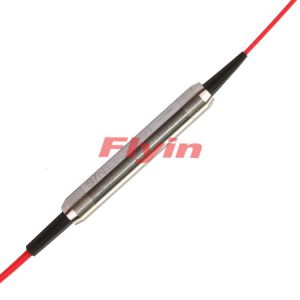

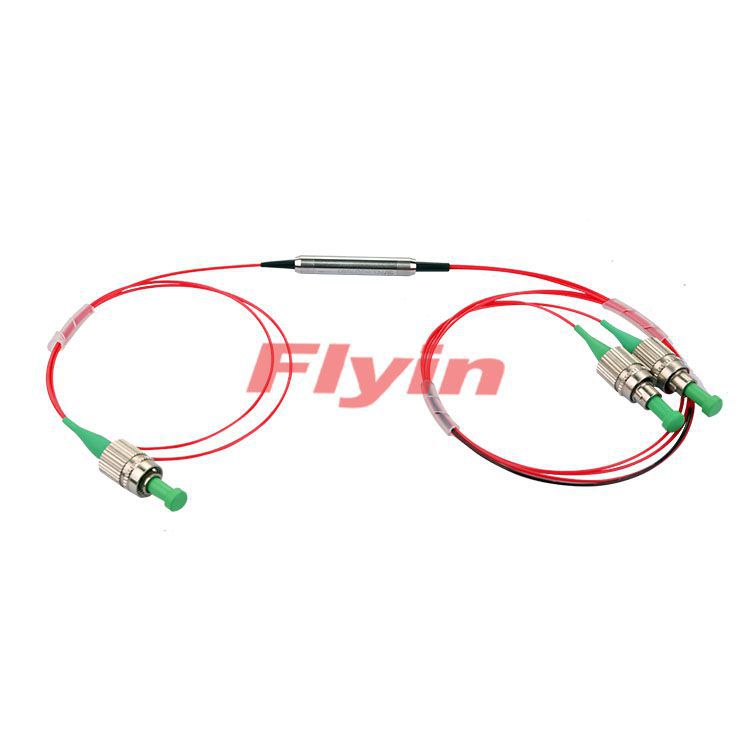

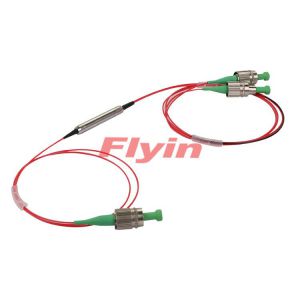

????Flyin Optronics’ Polarization Maintaining (PM) Products features low insertion loss, high return loss, wide pass band, high isolation, high extinction ratio, high reliability and stability. They are extensively used in optical amplifier, power monitoring, fiber sensors, WDM system, fiber optic systems testing, CATV and laboratory.
| Features | Applications |
| Low insertion Loss | High power EDFA |
| High extinction ratio | Raman amplifier |
| Compact in-line package | Laboratory |
| High stability and reliability | |
| Epoxy free on optical path |

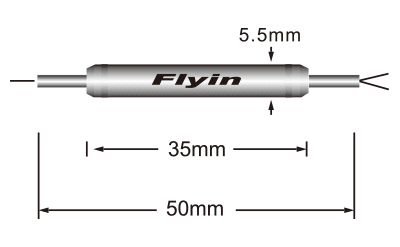

Package Dimension
| Parameter | P Grade | A Grade |
| Center Wavelength（nm） | 1310,1480 or 1550 | |
| Operating Wavelength Range（nm） | ±40 | |
| Typical Insertion Loss(dB) | 0.4 | 0.5 |
| Maximum Insertion Loss(dB) | ≤0.6 | ≤0.7 |
| Min.Extinction Ratio(for splitter only)(dB) | 23 | 20 |
| Min.Return Loss（dB） | 50 | |
| Direction of Incident Polarization | Slow Axis | |
| Operation Temperature(℃) | -10~+75 | |
| Storage Temperature(℃) | -40~+85 | |
| Fiber Type | PM on port1 and 2,SM or PM on port3 | |
| Power Handing(N) | 5 | |
| Dimension（mm） | Φ5.5×L35 | |
| Max.Optical Power（mW） | 500 | |
1.The PM fiber and the connector key are aligned to the slow axis.
2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.
3.The above specifications are for device without connector.
Flyin Optronics’ Polarization Maintaining (PM) Product include In-Line Polarizer, PM Isolator, Polarization Beam Combiner/Splitter, PM Filter Coupler, PM Circulator, PM FWDM and PM Patch cord.
| Configuration： |
Splitter Combiner |
| Grade： |
P Grade A Grade |
| PM Fiber Option： |
Port Port2 PandaPM Port3 SMF-28 All-PandaPM |
| Pigtail Style： |
Bare Fiber 900um Loose tube |
| Fiber Length： |
0.75m 1m Custom |
| Connector： |
None FC/APC FC/UPC SC/APC SC/UPC LC/APC LC/UPC ST Custom |
| Wavelength： |
1310nm 1480nm 1550nm |
????Flyin Optronics’ Polarization Maintaining (PM) Products features low insertion loss, high return loss, wide pass band, high isolation, high extinction ratio, high reliability and stability. They are extensively used in optical amplifier, power monitoring, fiber sensors, WDM system, fiber optic systems testing, CATV and laboratory.
| Features | Applications |
| Low insertion Loss | High power EDFA |
| High extinction ratio | Raman amplifier |
| Compact in-line package | Laboratory |
| High stability and reliability | |
| Epoxy free on optical path |
Package Dimension
| Parameter | P Grade | A Grade |
| Center Wavelength（nm） | 1310,1480 or 1550 | |
| Operating Wavelength Range（nm） | ±40 | |
| Typical Insertion Loss(dB) | 0.4 | 0.5 |
| Maximum Insertion Loss(dB) | ≤0.6 | ≤0.7 |
| Min.Extinction Ratio(for splitter only)(dB) | 23 | 20 |
| Min.Return Loss（dB） | 50 | |
| Direction of Incident Polarization | Slow Axis | |
| Operation Temperature(℃) | -10~+75 | |
| Storage Temperature(℃) | -40~+85 | |
| Fiber Type | PM on port1 and 2,SM or PM on port3 | |
| Power Handing(N) | 5 | |
| Dimension（mm） | Φ5.5×L35 | |
| Max.Optical Power（mW） | 500 | |
1.The PM fiber and the connector key are aligned to the slow axis.
2.The devices with connectors,insertion loss will be 0.3dB higher,RL will be 5dB lower,and ER will be 2dB lower.
3.The above specifications are for device without connector.
