Description
Parameters

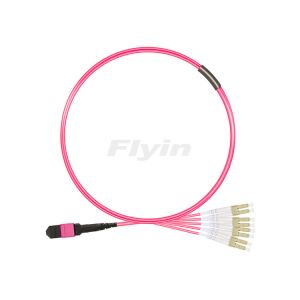

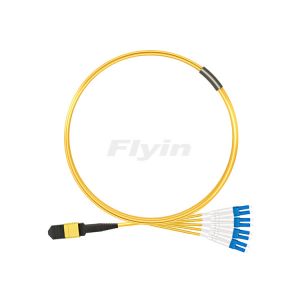

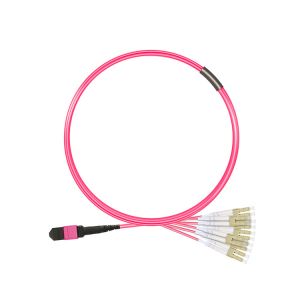

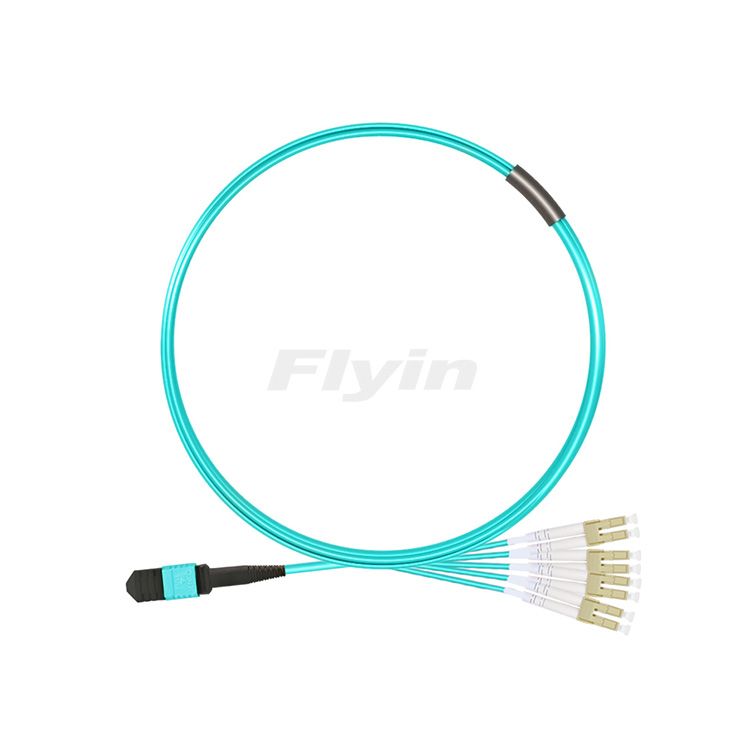

Flyin Optronics offer kinds of fiber patch cord, such as FC, SC, ST, LC, MU, MTRJ, MPO, E2000 series, available for PC/UPC/APC version, provide with SM, MM, OM3 fiber cable, simplex and duplex types, 0.9mm, 2.0mm, 3.0mm cable diameter for choose, different fiber length by customers request.
| Features | Applications |
| MPO connector complied with IEC-61754-7 | SAN (Storage area Network)data center LAN |
| A quick-to-deploy | LAN/SAN switch equipment distribution area(EDA) |
| Scalable solution | Emerging 40G and 100G protocol |
| High compatibility,flexibility&system performance | |
| Lower installation cost |

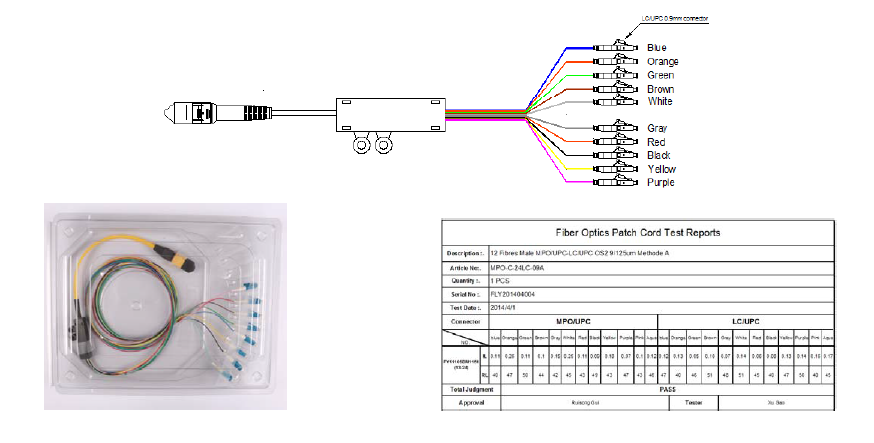

Packed with Plastic box,Label Size:190mm*150mm(A5)
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||||||||
| Polish | APC | PC | APC | PC | PC | PC | |||||||
| Insertion Loss(dB) | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 | ||||||
| Maximun | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |||||||
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |||||||
| Exchangeability(dB） | ≤0.3 | ||||||||||||
| Durability（dB） | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||||||||
| Tensile Strength（dB） | ≤0.3dB (Max 66N) | ||||||||||||
| Operating temperature（℃） | -20~+60 | ||||||||||||
| Storage temperature（℃） | -40~+80 | ||||||||||||
Fiber optic patch cord is used for linking the equipment and components in fiber optic network, is comprised of a polymer outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
| MPO Polish： |
UPC APC 8 degree |
| Housing Color： |
Beige Aqua Green Yellow Black Red Specify |
| Fiber Type： |
SM 9/125 G652D SM 9/125 G657A MM 50/125 (OM2) MM 50/125 (OM3) MM 50/125 (OM4) MM 62.5/125 (OM1) |
| Fiber Count： |
8 12 24 48 72 96 144 Specify |
| Cable Length： |
0.5m 1.0m 2.0m 3.0m Specify |
| Pigtail Length： |
0.5m 1.0m 1.5m 2.0m 2.5m 3.0m Specify |
| Cable Type： |
Bare-Ribbon Oval Round Specify |
| Polarity： |
Polarity A Polarity B Polarity C |
| Connector Type： |
MPO-Female MPO-Male FC/APC FC/UPC SC/APC SC/UPC LC/APC LC/UPC STMU Specify |
Flyin Optronics offer kinds of fiber patch cord, such as FC, SC, ST, LC, MU, MTRJ, MPO, E2000 series, available for PC/UPC/APC version, provide with SM, MM, OM3 fiber cable, simplex and duplex types, 0.9mm, 2.0mm, 3.0mm cable diameter for choose, different fiber length by customers request.
| Features | Applications |
| MPO connector complied with IEC-61754-7 | SAN (Storage area Network)data center LAN |
| A quick-to-deploy | LAN/SAN switch equipment distribution area(EDA) |
| Scalable solution | Emerging 40G and 100G protocol |
| High compatibility,flexibility&system performance | |
| Lower installation cost |
Packed with Plastic box,Label Size:190mm*150mm(A5)
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||||||||
| Polish | APC | PC | APC | PC | PC | PC | |||||||
| Insertion Loss(dB) | Typical | 0.50 | 0.50 | 0.30 | 0.30 | 0.50 | 0.30 | ||||||
| Maximun | 0.70 | 0.70 | 0.50 | 0.50 | 0.70 | 0.50 | |||||||
| Return Loss（dB） | 60 | 45 | 60 | 45 | 20 | 20 | |||||||
| Exchangeability(dB） | ≤0.3 | ||||||||||||
| Durability（dB） | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||||||||
| Tensile Strength（dB） | ≤0.3dB (Max 66N) | ||||||||||||
| Operating temperature（℃） | -20~+60 | ||||||||||||
| Storage temperature（℃） | -40~+80 | ||||||||||||
