Description

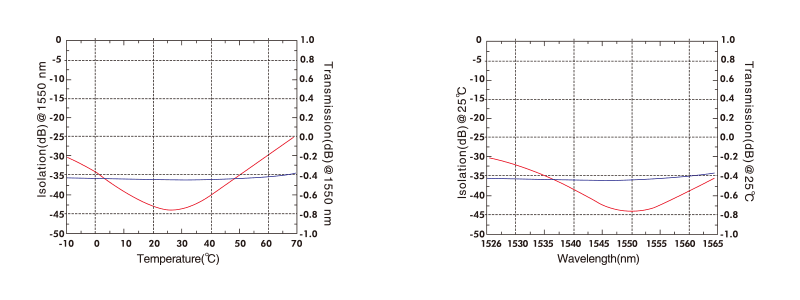

Parameters
| Features | Applications |
| High Isolation | Fiberoptic Amplifiers |
| Low Insertion Loss | CATV Fiberoptic Links |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Telecommunications |
Package Dimensions
| Parameter | P Grade | A Grade |
| Operating Wavelength (nm) | 1570~1600 | |
| Typical Isolation (dB) | ≥41 | ≥40 |
| Minimum Isolation (dB) | ≥30 | ≥28 |
| Typical Insertion Loss (dB) | 0.4 | 0.5 |
| Maximum Insertion Loss (dB) | ≤0.6 | ≤0.8 |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.1 |
| Polarization Mode Dispersion(ps) | 0.25(0.05 available upon request) | |
| Bandwidth(nm) | ±15 | |
| Operating Temperature (℃) | -10~+75 | |
| Storage Temperature (℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length (Min.) | 1 meter each end | |
| Package Dimension (mm) | Φ3.0x25 | |
| Power Handling (mW) | 300 | |
| Parameter | P Grade | A Grade |
| Operating Wavelength (nm) | 1565-1610 | |
| Typical Isolation (dB) | ≥50 | ≥45 |
| Minimum Isolation (dB) | ≥45 | ≥40 |
| Typical Insertion Loss (dB) | 0.65 | 0.80 |
| Maximum Insertion Loss (dB) | ≤0.80 | ≤1.2 |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.1 |
| Polarization Mode Dispersion(ps) | 0.05 | |
| Operating Temperature (℃) | -10~+75 | |
| Storage Temperature (℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length (Min.) | 1 meter each end | |
| Package Dimension (mm) | Φ 5.5 x L30 | |
| Power Handling (mW) | 300 | |

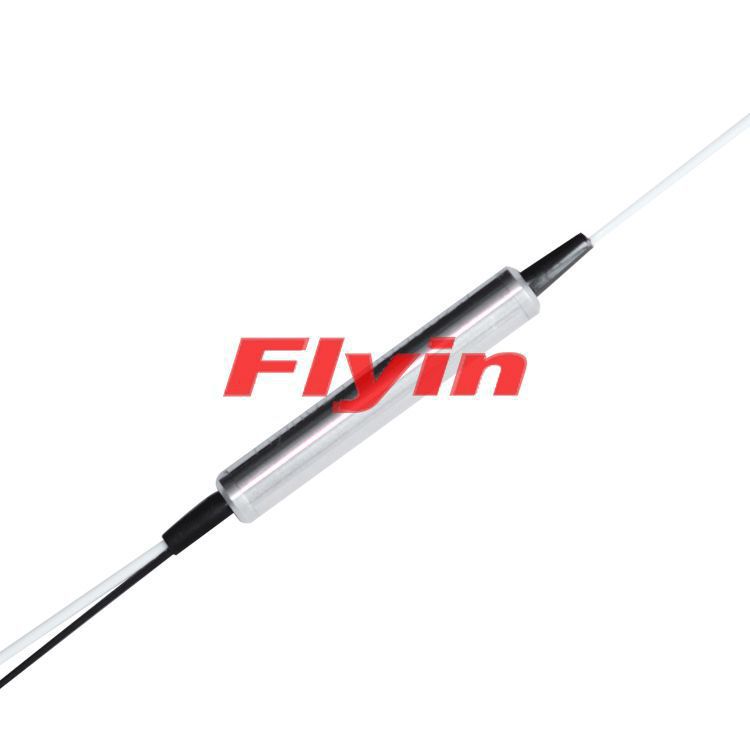

Flyin Optronics’ Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
| Isolator Type： |
Singgle Stage Dual Stage |
| Grade： |
Premium A Grade |
| Pigtail Style： |
Bare Fiber 900um jacket |
| Fiber Style： |
1.0m 1.5m 2.0m Custom |
| Connector： |
None FC/APC FC/PC SC/APC SC/PC ST LC |
| Wavelength： |
L Band |
| Features | Applications |
| High Isolation | Fiberoptic Amplifiers |
| Low Insertion Loss | CATV Fiberoptic Links |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Telecommunications |
Package Dimensions
| Parameter | P Grade | A Grade |
| Operating Wavelength (nm) | 1570~1600 | |
| Typical Isolation (dB) | ≥41 | ≥40 |
| Minimum Isolation (dB) | ≥30 | ≥28 |
| Typical Insertion Loss (dB) | 0.4 | 0.5 |
| Maximum Insertion Loss (dB) | ≤0.6 | ≤0.8 |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.1 |
| Polarization Mode Dispersion(ps) | 0.25(0.05 available upon request) | |
| Bandwidth(nm) | ±15 | |
| Operating Temperature (℃) | -10~+75 | |
| Storage Temperature (℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length (Min.) | 1 meter each end | |
| Package Dimension (mm) | Φ3.0x25 | |
| Power Handling (mW) | 300 | |
| Parameter | P Grade | A Grade |
| Operating Wavelength (nm) | 1565-1610 | |
| Typical Isolation (dB) | ≥50 | ≥45 |
| Minimum Isolation (dB) | ≥45 | ≥40 |
| Typical Insertion Loss (dB) | 0.65 | 0.80 |
| Maximum Insertion Loss (dB) | ≤0.80 | ≤1.2 |
| Return Loss (In/Out) (dB) | ≥65/60 | ≥55/55 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.1 |
| Polarization Mode Dispersion(ps) | 0.05 | |
| Operating Temperature (℃) | -10~+75 | |
| Storage Temperature (℃) | -40~+85 | |
| Fiber Type | Corning SMF-28 | |
| Fiber Length (Min.) | 1 meter each end | |
| Package Dimension (mm) | Φ 5.5 x L30 | |
| Power Handling (mW) | 300 | |
