Description
Parameters
| Features | Applications |
| High Isolation | Fiberoptic Amplifiers |
| Low Insertion Loss | CATV Fiberoptic Links |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Telecommunications |

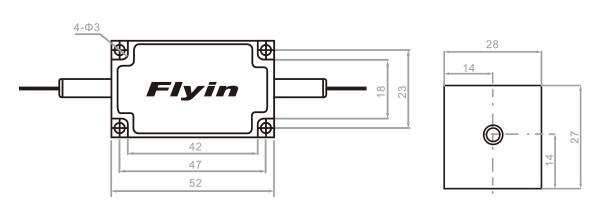

Package Dimension
| Parameter | Specification |
| Operating Wavelength (nm) | 850±20,980±20,1060±20 |
| Typical Isolation (dB) | 25 |
| Minimum Isolation (dB) | 23 |
| Typical Insertion (dB) | 1.0 |
| Maximum Insertion Loss (dB) | 1.2 |
| Return Loss (dB) | 50 |
| Polarization Dependent Loss(dB) | 0.2 |
| Operating Temperature(℃) | 0~+50 |
| Storage Temperature(℃) | -40~+85 |
| Fiber type | HI 780 Fiber or customer |
| Package Dimension (nm) | L52×W28×H27 |
| Power Handling(mW) | 300 |
1.Specifications may change without notice..
2.Above specification are for device without connector.

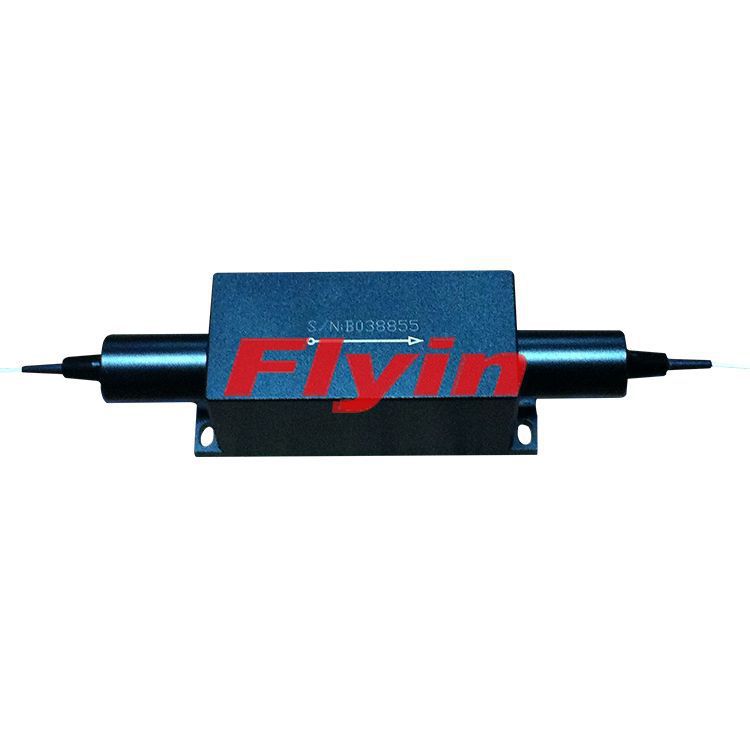

Flyin Optronics’ Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.
| Pigtail Style： |
Bare Fiber 900um jacket |
| Fiber Length： |
1.0m 1.5m 2.0m Custom |
| Fiber Type： |
HI 780 HI 980 HI 1060 |
| Connector： |
None FC/APC FC/PC SC/APC SC/PC ST LC Custom |
| Wavelength： |
850nm 980nm 1060nm |
| Features | Applications |
| High Isolation | Fiberoptic Amplifiers |
| Low Insertion Loss | CATV Fiberoptic Links |
| High Return Loss | Fiberoptic Systems Testing |
| Low Polarization Sensitivity | Fiberoptic LAN Systems |
| Telecommunications |
Package Dimension
| Parameter | Specification |
| Operating Wavelength (nm) | 850±20,980±20,1060±20 |
| Typical Isolation (dB) | 25 |
| Minimum Isolation (dB) | 23 |
| Typical Insertion (dB) | 1.0 |
| Maximum Insertion Loss (dB) | 1.2 |
| Return Loss (dB) | 50 |
| Polarization Dependent Loss(dB) | 0.2 |
| Operating Temperature(℃) | 0~+50 |
| Storage Temperature(℃) | -40~+85 |
| Fiber type | HI 780 Fiber or customer |
| Package Dimension (nm) | L52×W28×H27 |
| Power Handling(mW) | 300 |
1.Specifications may change without notice..
2.Above specification are for device without connector.
