Description
Parameters
| Features | Applications |
| Low Insertion Loss | Optical Amplifier |
| Low PDL | Pump laser Source |
| High Stability and Reliability | Fiber Optic Sensor |
| Cost Effective | Test and Measurement |
| Instrumentation |
Package Dimension
| Parameter | Specification | |||
| Operating Wavelength (nm) | -- | 980±20 | 850±20 | |
| Isolation（dB） | Typical | 25 | ||
| Minimum | 20 | |||
| Insertion Loss（dB） | Typical | 1.3 | ||
| Maximum | 1.8 | |||
| Cross Talk(dB) | 45 | |||
| Return Loss（dB） | 50 | |||
| Polarization Dependent Loss（dB） | 0.2 | |||
| Opterating Temperature(℃) | 0~+50 | |||
| Storage Temperature(℃) | -40~+85 | |||
| Package dimension(mm) | L62.6×W28×H27 | |||
| Power Handling(mW) | 300~2W | |||
1、Specifications may change without notice.
2、Above specification are for device without connector.

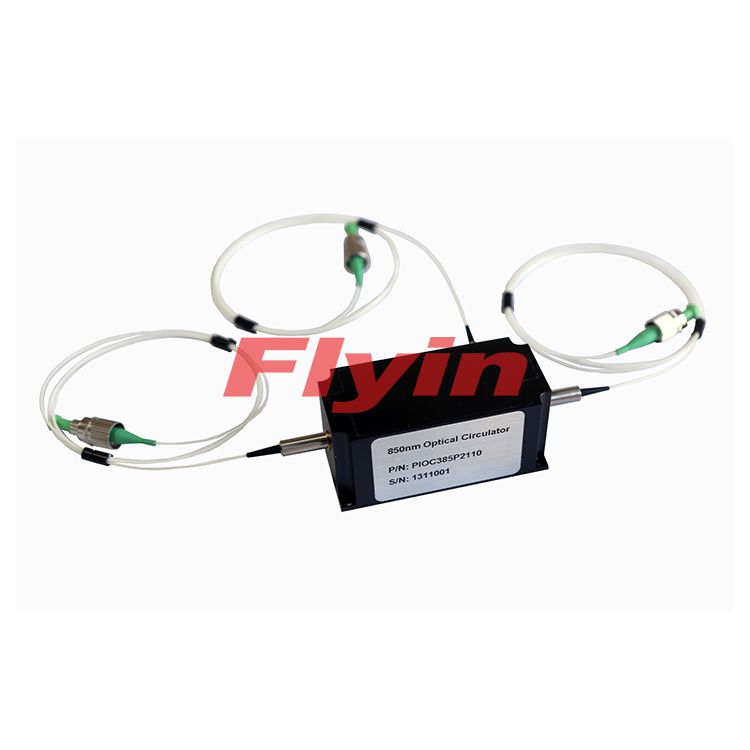

Flyin Optronics’ polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.
| Port： |
3 Port |
| Grade： |
P Grade |
| Pigtail Style： |
Bare Fiber 900μm Loose tube |
| Fiber Length： |
0.5m 1m Special |
| Fiber Type： |
HI 780fiber HI 1060fiber |
| In/Out Connctor： |
None FC/APC FC/UPC SC/APC SC/UPC LC/APC LC/UPC ST custom |
| Wavelength： |
980nm 850nm |
| Features | Applications |
| Low Insertion Loss | Optical Amplifier |
| Low PDL | Pump laser Source |
| High Stability and Reliability | Fiber Optic Sensor |
| Cost Effective | Test and Measurement |
| Instrumentation |
Package Dimension
| Parameter | Specification | |||
| Operating Wavelength (nm) | -- | 980±20 | 850±20 | |
| Isolation（dB） | Typical | 25 | ||
| Minimum | 20 | |||
| Insertion Loss（dB） | Typical | 1.3 | ||
| Maximum | 1.8 | |||
| Cross Talk(dB) | 45 | |||
| Return Loss（dB） | 50 | |||
| Polarization Dependent Loss（dB） | 0.2 | |||
| Opterating Temperature(℃) | 0~+50 | |||
| Storage Temperature(℃) | -40~+85 | |||
| Package dimension(mm) | L62.6×W28×H27 | |||
| Power Handling(mW) | 300~2W | |||
1、Specifications may change without notice.
2、Above specification are for device without connector.
