Description
Parameters
| Features | Applications |
| Unmatched Low Cost | Ring Network |
| Available in Single Mode / Multi Mode | Node Bypass Protection |
| Non-Latching Type | SDH ADM Ring |
| Power on Time delay(0, 60, 120secs) | WAN Optimization |
Parameters | Specifications | Unit |
Wavelength Range | 1260-1650 | nm |
Test Wavelength | 1310/1550 | nm |
Straight Insertion Loss1 | ≤1.5 | dB |
Bypass Insertion Loss1 | ≤1.5 | dB |
Polarization Dependent Loss | ≤0.05 | dB |
Wavelength Dependent Loss | ≤0.25 | dB |
Temperature Dependent Loss | ≤0.25 | dB |
Crosstalk | ≥55 | dB |
Return | ≥50 | dB |
Repeatability | ≤0.02 | dB |
Power supply | 5±0.5 | USB |
Lifetime2 | ≥107 | Times |
Switch Time | ≤8 | ms |
Delay after power restart | ?5, 7,10 | Min |
Transmission Power | 500 | mW |
Operating Temperature | -20~+70 | ℃ |
Storage Temperature | -5~+85 | ℃ |
Operating Humidity | 5~95 | %RH |
Storage Humidity | 5~95 | %RH |
Connector | LC/UPC | / |
Package size | (L)130×(W)102×(H)30 | mm |

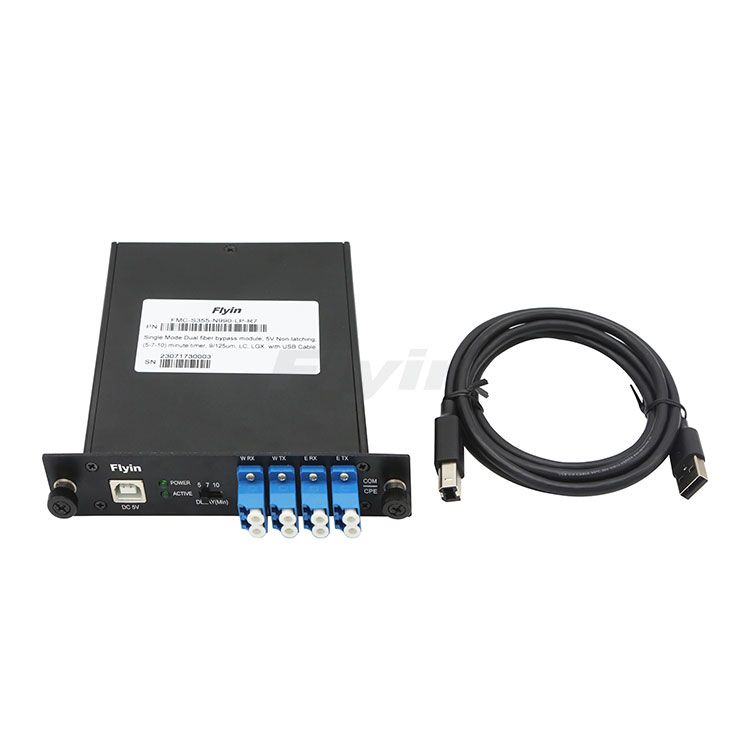

Flyin Group' D2x2B LGX optical switch with USB provides excellent performance on your network and posses compact packageandcompetitive cost. It supports all wavelength at 850nm and 1260nm~1650nm. It can also support 10 /1Gbps fiber Gigabit Ethernetnetworks.
| Features | Applications |
| Unmatched Low Cost | Ring Network |
| Available in Single Mode / Multi Mode | Node Bypass Protection |
| Non-Latching Type | SDH ADM Ring |
| Power on Time delay(0, 60, 120secs) | WAN Optimization |
Parameters | Specifications | Unit |
Wavelength Range | 1260-1650 | nm |
Test Wavelength | 1310/1550 | nm |
Straight Insertion Loss1 | ≤1.5 | dB |
Bypass Insertion Loss1 | ≤1.5 | dB |
Polarization Dependent Loss | ≤0.05 | dB |
Wavelength Dependent Loss | ≤0.25 | dB |
Temperature Dependent Loss | ≤0.25 | dB |
Crosstalk | ≥55 | dB |
Return | ≥50 | dB |
Repeatability | ≤0.02 | dB |
Power supply | 5±0.5 | USB |
Lifetime2 | ≥107 | Times |
Switch Time | ≤8 | ms |
Delay after power restart | ?5, 7,10 | Min |
Transmission Power | 500 | mW |
Operating Temperature | -20~+70 | ℃ |
Storage Temperature | -5~+85 | ℃ |
Operating Humidity | 5~95 | %RH |
Storage Humidity | 5~95 | %RH |
Connector | LC/UPC | / |
Package size | (L)130×(W)102×(H)30 | mm |
