Description
Parameters
| Features | Application |
| Hot Pluggable QSFP-DD Form Factor | 2×100GBASE-SR4 Ethernet |
| Max. Power Consumption 4.5W | Infiniband Interconnects |
| High-speed Electrical Compliant | Data Center?Interconnects |
| Digital Optical Monitoring Capability for Strong Diagnostic Capabilities | NVLink Interconnects |
| Switch & Router Connections |

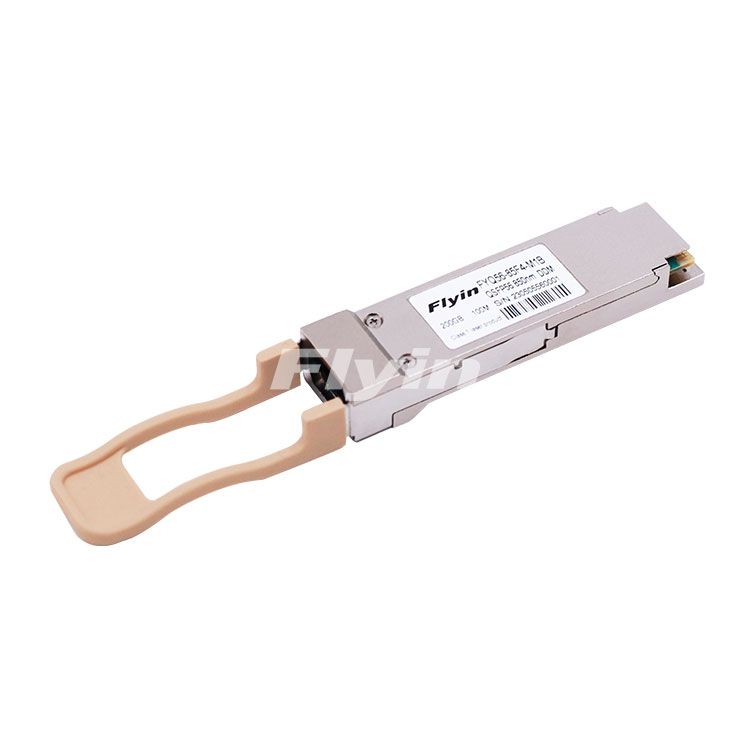

200G-QSFP56 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ56-85F4-M1B | 200Gb/s | 850nm | 100M | -6.5~4dBm | ≤-5.4dBm | VCSEL | MPO |
FYQ56-4CF4-10B | 200Gb/s | LWDM4 | 10KM | -4~5dBm | ≤-8.2dBm | DML | LC |
200G-QSFP-DD Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ2D-85O8-M1B | 200Gb/s | 850nm | 100M | -8.4~2.4dBm | ≤-10.3dBm | VCSEL | MPO |
Flyin 200G transceiver complies with the CMIS4.04, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
| Features | Application |
| Hot Pluggable QSFP-DD Form Factor | 2×100GBASE-SR4 Ethernet |
| Max. Power Consumption 4.5W | Infiniband Interconnects |
| High-speed Electrical Compliant | Data Center?Interconnects |
| Digital Optical Monitoring Capability for Strong Diagnostic Capabilities | NVLink Interconnects |
| Switch & Router Connections |
200G-QSFP56 Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ56-85F4-M1B | 200Gb/s | 850nm | 100M | -6.5~4dBm | ≤-5.4dBm | VCSEL | MPO |
FYQ56-4CF4-10B | 200Gb/s | LWDM4 | 10KM | -4~5dBm | ≤-8.2dBm | DML | LC |
200G-QSFP-DD Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
FYQ2D-85O8-M1B | 200Gb/s | 850nm | 100M | -8.4~2.4dBm | ≤-10.3dBm | VCSEL | MPO |
