Description
Parameters
| Features | Applications |
| High dense spaces | Telecommunication |
| Ceramic ferrules connectors | CATV,FTTH,LAN |
| Low insertion loss,high return loss | Fiber optic sensors |
| Half the size of standard connector | Optical transmission system |
| Excellent mechanical endurance | Test equipment |
| High credibility and stability | |
| Good in repeatability and exchangeability | |
| 100% Insertion,Return Loss, End face and Interference inspection |
| Parameter | FC,SC,LC | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Operating Wavelength（nm） | 1310,1550 | 850，1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | |
| Insertion Loss（dB） | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss（dB） | ≥50 | ≥60 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability（dB） | ≤0.1 | ||||||
| Interchangeability（dB） | ≤0.2 | ||||||
| Plug times（times） | ≥1000 | ||||||
| Tensil Strength（N） | ≥100 | ||||||
| Durability（dB） | ≤0.2 | ||||||
| Operating temperature（℃） | -45~+75 | ||||||
| Storage temperature（℃） | -45~+85 | ||||||
1、Specifications may change without notice.
2、Above specification are for device without connector.
| Mode number | Single-Mode | Multi-Mode |
| Length | (10.50±0.05)mm | (10.50±0.01)mm |
| Outer-diameter | (2.4990±0.0005)mm | (2.4990±0.0001)mm |
| Inner-diameter | (0.125+0.001/-0)mm | (0.126-0.129)mm |
| Concentricity | ≤1.0 | ≤4.0 |

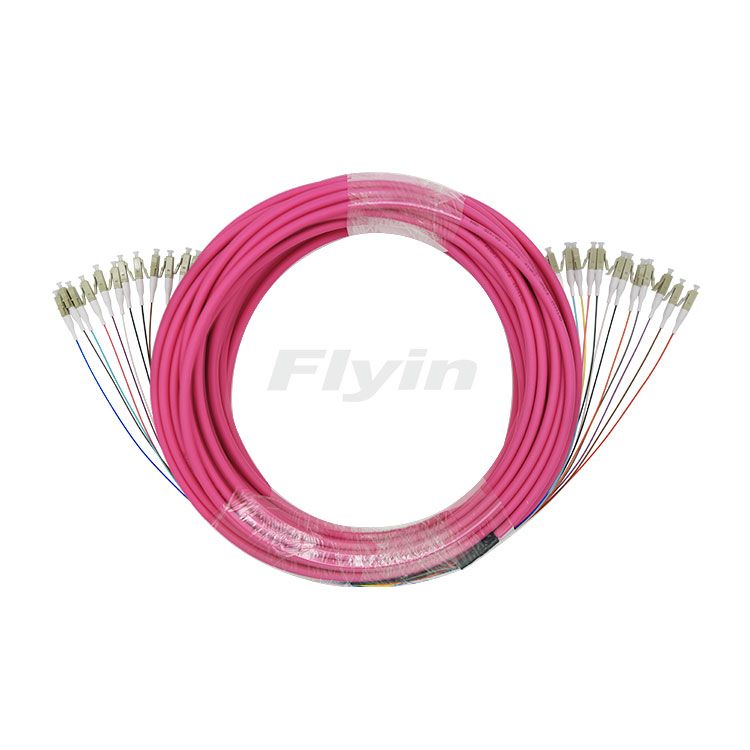

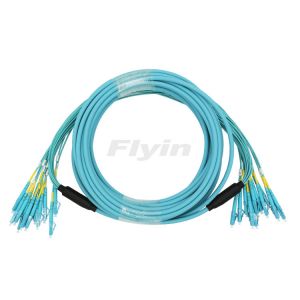

Flyin provides all kinds of optical patch cable, with low insertion loss, high return loss features, and custom lengths and colors availiable.
| Features | Applications |
| High dense spaces | Telecommunication |
| Ceramic ferrules connectors | CATV,FTTH,LAN |
| Low insertion loss,high return loss | Fiber optic sensors |
| Half the size of standard connector | Optical transmission system |
| Excellent mechanical endurance | Test equipment |
| High credibility and stability | |
| Good in repeatability and exchangeability | |
| 100% Insertion,Return Loss, End face and Interference inspection |
| Parameter | FC,SC,LC | ST,MU | MTRJ | ||||
| SM | MM | SM | MM | SM | MM | ||
| UPC | APC | UPC | UPC | UPC | UPC | UPC | |
| Operating Wavelength（nm） | 1310,1550 | 850，1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | |
| Insertion Loss（dB） | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss（dB） | ≥50 | ≥60 | ≥35 | ≥50 | ≥35 | ≥50 | ≥35 |
| Repeatability（dB） | ≤0.1 | ||||||
| Interchangeability（dB） | ≤0.2 | ||||||
| Plug times（times） | ≥1000 | ||||||
| Tensil Strength（N） | ≥100 | ||||||
| Durability（dB） | ≤0.2 | ||||||
| Operating temperature（℃） | -45~+75 | ||||||
| Storage temperature（℃） | -45~+85 | ||||||
1、Specifications may change without notice.
2、Above specification are for device without connector.
| Mode number | Single-Mode | Multi-Mode |
| Length | (10.50±0.05)mm | (10.50±0.01)mm |
| Outer-diameter | (2.4990±0.0005)mm | (2.4990±0.0001)mm |
| Inner-diameter | (0.125+0.001/-0)mm | (0.126-0.129)mm |
| Concentricity | ≤1.0 | ≤4.0 |
