Description
Parameters
| Features | Application |
| Hot Pluggable QSFP-DD Form Factor | 400G Ethernet |
| Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4 | Infiniband Interconnects |
| High-speed Electrical Compliant | Data Center?Interconnects |
| Low power consumption | NVLink Interconnects |
| AI |
400Gb/s QSFP-DD Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYQDD-85F8-M1B | 400Gb/s | 850nm | 100M | -6~4dBm | -7.9~4dBm | VCSEL | MTP/MPO |
FYQDD-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~4dBm | DFB | MTP/MPO |
FYQDD-4C4H-10B | 400Gb/s | 1271nm,1291nm 1311nm.1331nm | 10KM | -2.8~4dBm | -9.1~4dBm | CWDM EML | LC |
FYQDD-134H-40B | 400Gb/s | 1310nm | 40KM | -0.6~5.6dBm | -16.1~-3.4dBm | LWDM EML | LC |
400Gb/s QSFP112?Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYQ112-854H-M1B | 400Gb/s | 850nm | 100M | -4.6~4dBm | -6.4~4dBm | VCSEL | MTP/MPO |
FYQ112-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~4dBm | SiPh | MTP/MPO |
FYQ112-134H-10B | 400Gb/s | 1310nm | 2KM | -2.7~5.1dBm | -6.8~4.4dBm | EML | LC |

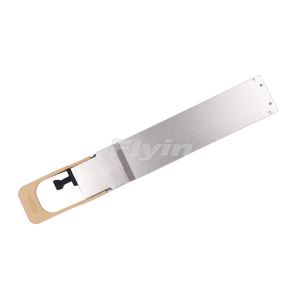

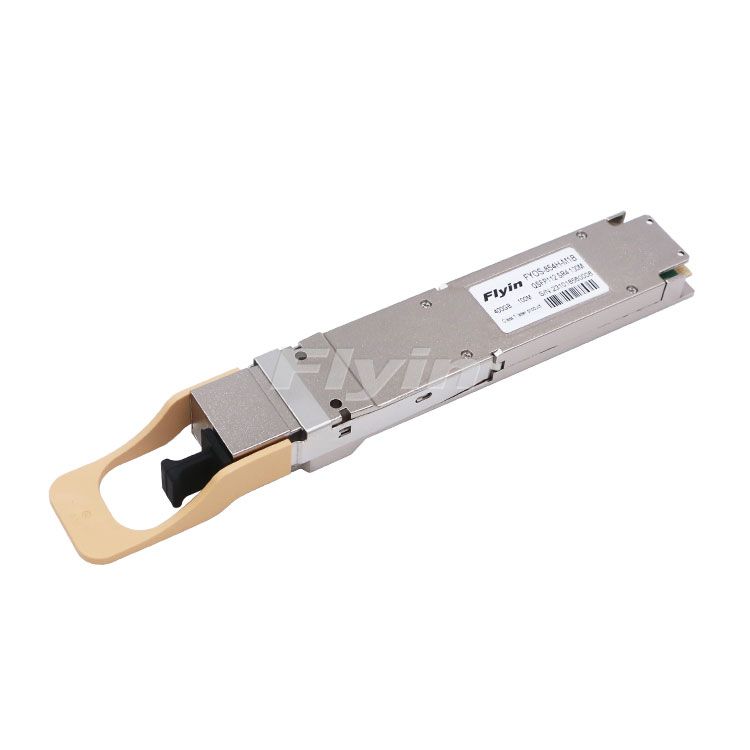

400Gb/s OSFP?Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYOS-85F8-M1B | 400Gb/s | 850nm | 100M | -6.5~4dBm | -8.4~4dBm | VCSEL | MTP/MPO |
FYOS-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~5dBm | SiPh | MTP/MPO |
Flyin 400G OSFP pluggable optical transceiver modules support 400G Ethernet and InfiniBand NDR data rates. This portfolio includes VR4 50m,SR4 100m,DR4 500m,DR4+/FR4 2km, CWDM4 6km, and DR4++ 10km etc.
| Features | Application |
| Hot Pluggable QSFP-DD Form Factor | 400G Ethernet |
| Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4 | Infiniband Interconnects |
| High-speed Electrical Compliant | Data Center?Interconnects |
| Low power consumption | NVLink Interconnects |
| AI |
400Gb/s QSFP-DD Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYQDD-85F8-M1B | 400Gb/s | 850nm | 100M | -6~4dBm | -7.9~4dBm | VCSEL | MTP/MPO |
FYQDD-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~4dBm | DFB | MTP/MPO |
FYQDD-4C4H-10B | 400Gb/s | 1271nm,1291nm 1311nm.1331nm | 10KM | -2.8~4dBm | -9.1~4dBm | CWDM EML | LC |
FYQDD-134H-40B | 400Gb/s | 1310nm | 40KM | -0.6~5.6dBm | -16.1~-3.4dBm | LWDM EML | LC |
400Gb/s QSFP112?Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYQ112-854H-M1B | 400Gb/s | 850nm | 100M | -4.6~4dBm | -6.4~4dBm | VCSEL | MTP/MPO |
FYQ112-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~4dBm | SiPh | MTP/MPO |
FYQ112-134H-10B | 400Gb/s | 1310nm | 2KM | -2.7~5.1dBm | -6.8~4.4dBm | EML | LC |
400Gb/s OSFP?Transceiver
Model | Rate | Wavelength | Transmission Distance | Output Optic Power | Rx. Sensitivity | Laser | Interface |
FYOS-85F8-M1B | 400Gb/s | 850nm | 100M | -6.5~4dBm | -8.4~4dBm | VCSEL | MTP/MPO |
FYOS-134H-M5B | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~5dBm | SiPh | MTP/MPO |
