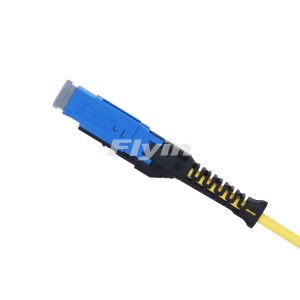

MDC to LC UPC Optical Patchcord designed for?termination of Multi-mode and Single-mode fiber cables up to 2.0mm in diameter. The MDC connector is manufactured?with proven 1.25mm ferrule technology used in industry standard LC optical connectors, meeting IEC 61735-1 Grade B?insertion loss requirements.
?
Features:
? Two 1.25mm ferrules in one connector housing.
? Push-pull boot for connector insertion and extraction.
? Simple polarity reversal with no exposed fibers.
? Meets IEC 61735-1 Grade B insertion loss requirements.
? Telcordia GR-326 and TIA-568 compliant.
? Designed for cables up to 2.0mm OD.
? MM, SM and SM APC available.
? 3x fiber cabling density over LC.

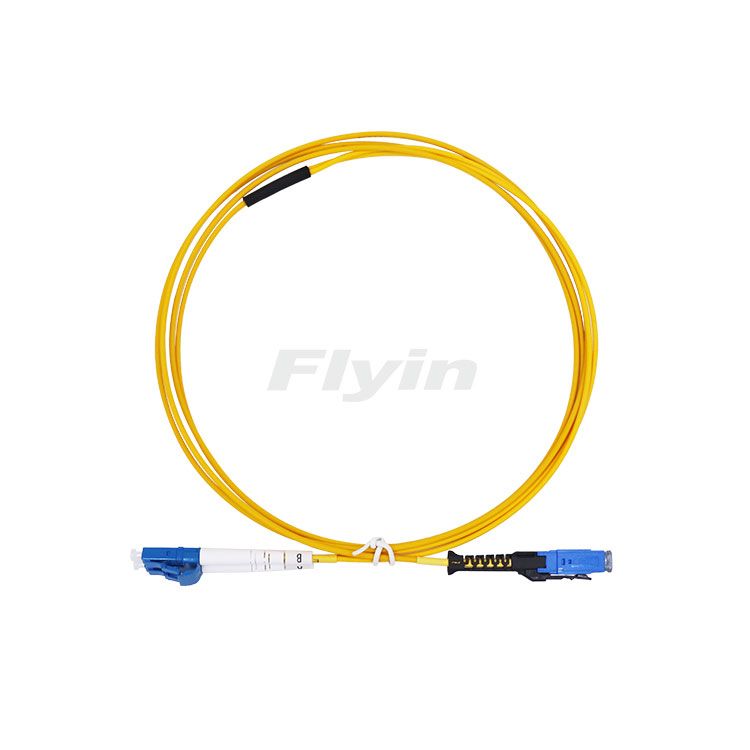

Flyin MDC to LC UPC Single Mode, Duplex, 2.0mm, LSZH optical patch cable designed for termination of Multi-mode and Single-mode fiber cables up to 2.0mm in diameter.
MDC to LC UPC Optical Patchcord designed for?termination of Multi-mode and Single-mode fiber cables up to 2.0mm in diameter. The MDC connector is manufactured?with proven 1.25mm ferrule technology used in industry standard LC optical connectors, meeting IEC 61735-1 Grade B?insertion loss requirements.
?
Features:
? Two 1.25mm ferrules in one connector housing.
? Push-pull boot for connector insertion and extraction.
? Simple polarity reversal with no exposed fibers.
? Meets IEC 61735-1 Grade B insertion loss requirements.
? Telcordia GR-326 and TIA-568 compliant.
? Designed for cables up to 2.0mm OD.
? MM, SM and SM APC available.
? 3x fiber cabling density over LC.
