Description
Parameters
| Features | Applications |
| Low?Insertion?Loss | High speed transceivers |
| Excellent thermal stability | DWDM systems |
| Extremely small | Fiber optics instruments |
| Alignment individually | Laboratory application |
Parameters | Specifications | Unit | |
Channel (Add/Drop) | C25/C27/C29/C32/C34/C37/C39/C41/C44 | nm | |
Channel Spacing | 200 | GHz | |
Channel Passband(@-0.5dB bandwidth) | ≥0.5 | nm | |
Insertion Loss | ≤2.0 | dB | |
Isolation | Adjacent?Channel | ≥30 | dB |
Non-adjacent?Channel | ≥45 | dB | |
Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
Polarization Dependent Loss | ≤0.3 | dB | |
Polarization Mode Dispersion | ≤0.1 | ps | |
Directivity | ≥45 | dB | |
Return Loss | ≥45 | dB | |
Fiber Type | SMF-28e Bare Fiber | ||
Fiber Length | ≥2.0 | m | |
Connector | NA | ||
Maximum Power Handing | 300 | mW | |
Operating Temperature | -40~+85 | ℃ | |
Storage Temperature | -40~+85 | ℃ | |
Package Size | L27.8?x?W15?x?H6.5 | mm | |
Notes: The above parameters without connector,a pair of connector loss?is 0.25 dB.

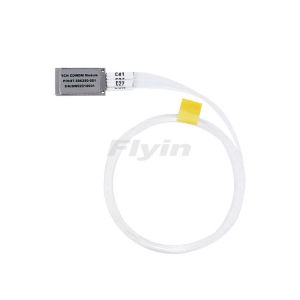

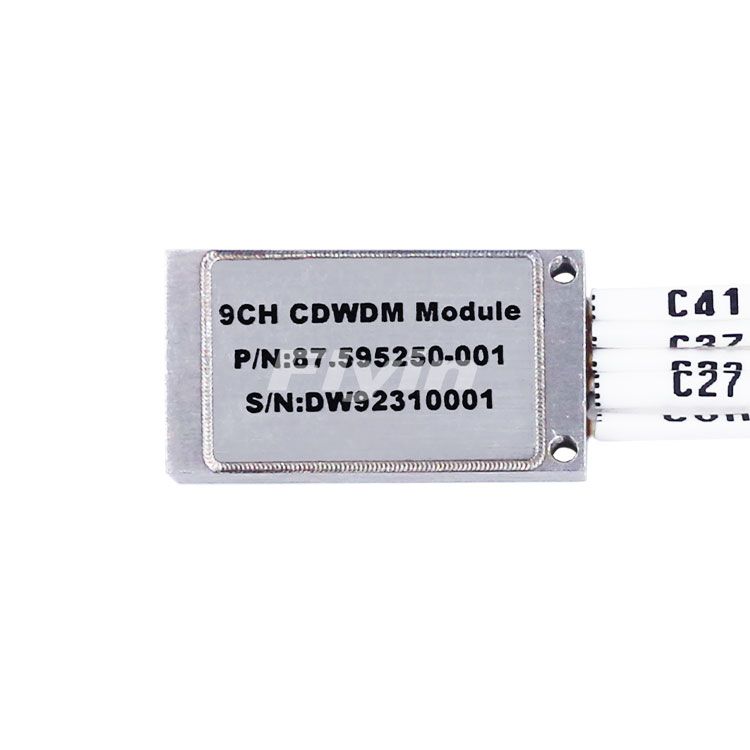

Flyin' ultra-compact DWDM is based on TFF platform. A series TFFs are attached to a glass or metal base. To make it ultra-compact, folding mirrors are used and light path is zigzag form. The integrated optical and mechanical components are then tightly packaged. The function of such DWDM device is to combine multiple wavelengths into single fiber or send different wavelengths to separate fibers.
| Features | Applications |
| Low?Insertion?Loss | High speed transceivers |
| Excellent thermal stability | DWDM systems |
| Extremely small | Fiber optics instruments |
| Alignment individually | Laboratory application |
Parameters | Specifications | Unit | |
Channel (Add/Drop) | C25/C27/C29/C32/C34/C37/C39/C41/C44 | nm | |
Channel Spacing | 200 | GHz | |
Channel Passband(@-0.5dB bandwidth) | ≥0.5 | nm | |
Insertion Loss | ≤2.0 | dB | |
Isolation | Adjacent?Channel | ≥30 | dB |
Non-adjacent?Channel | ≥45 | dB | |
Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
Polarization Dependent Loss | ≤0.3 | dB | |
Polarization Mode Dispersion | ≤0.1 | ps | |
Directivity | ≥45 | dB | |
Return Loss | ≥45 | dB | |
Fiber Type | SMF-28e Bare Fiber | ||
Fiber Length | ≥2.0 | m | |
Connector | NA | ||
Maximum Power Handing | 300 | mW | |
Operating Temperature | -40~+85 | ℃ | |
Storage Temperature | -40~+85 | ℃ | |
Package Size | L27.8?x?W15?x?H6.5 | mm | |
Notes: The above parameters without connector,a pair of connector loss?is 0.25 dB.
