Description
Parameters
| Features | Applications |
| High reflectance at test wavelength (Over 99.5%) | FTTX?network |
| Based?on?FBG?technology? | FTTX?troubleshooting |
| Easy?to?install | |
| Exceptional?reliability?and?environmental?stability |
| Parameter | Specification | ||
| Wavelength Rang（nm） | Pass Band? ? ? ? ? ? ? ? | 1260~1360&1460~1600&1600~1625 | |
| Reflection Band | 1644.5~1655.5 | ||
| Insertion Loss (dB) | Pass Band @1260-1360 | ≤1.4 | |
| Pass Band @1460-1600 | ≤1.4 | ||
| Pass Band @1600-1625 | ≤3.4 | ||
| Reflect Band @1644.5~1655.5 | ≥21 | ||
| Return Loss（dB） | Reflect Band @1260-1360 | ≥35 | |
| Reflect Band @1460-1600 | ≥30 | ||
| Reflect Band @1600~1625 | ≥20 | ||
| Reflect Band @1644.5~1655.5 | ≤1.0 | ||
| Polarization Dependent Loss（dB） | ≤0.3 | ||
| TDL (dB) | ≤0.5 | ||
| Ripple (dB) | ≤0.5 | ||
| Maximum Optical Power Handing (dBm) | 27 | ||
| Plug Times (Times) | 500 | ||
| Input/Output Connectors | *SC/APC | ||
*Note:? SC/UPC, LC/UPC and LC/APC type are all available on request.
Absolute Maximum Ratings
Parameters ? | Conditions ? | Specifications ? | Unit | |
Min. | Max. | |||
Operating ? Temperature | Device ? Not Powered on Heater Element | -20 | 75 | oC |
Operating ? Humidity | Non-Condensing ? Environment | 0 | 95 | %RH |
Storage ? Temperature | Device ? Not Powered on Heater Element | -40 | 85 | oC |
Storage ? Humidity | Non-Condensing ? Environment | 0 | 95 | %RH |

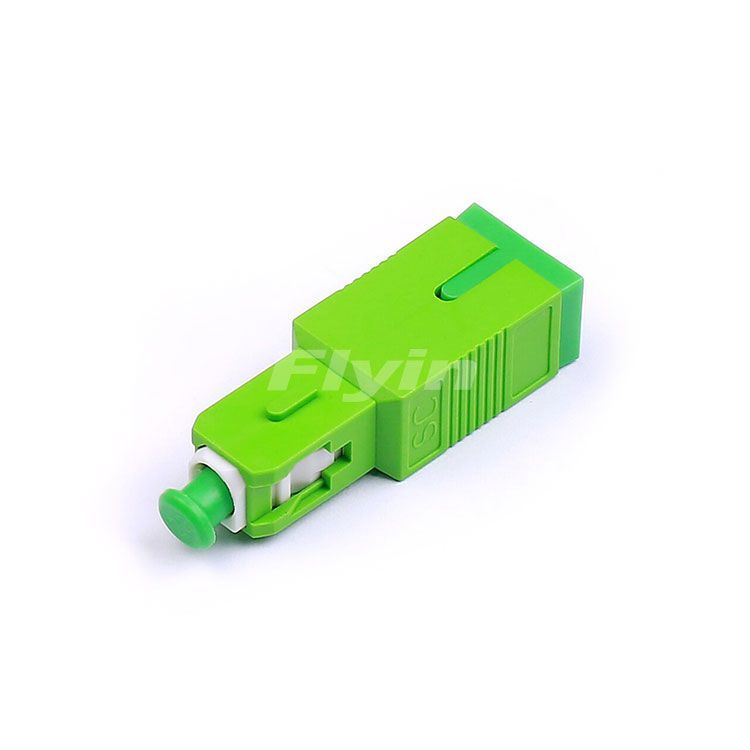

Flyin SC/APC 1644.5nm to 1655.5nm OTDR WDM reflect widely used in FTTX network.
| Features | Applications |
| High reflectance at test wavelength (Over 99.5%) | FTTX?network |
| Based?on?FBG?technology? | FTTX?troubleshooting |
| Easy?to?install | |
| Exceptional?reliability?and?environmental?stability |
| Parameter | Specification | ||
| Wavelength Rang（nm） | Pass Band? ? ? ? ? ? ? ? | 1260~1360&1460~1600&1600~1625 | |
| Reflection Band | 1644.5~1655.5 | ||
| Insertion Loss (dB) | Pass Band @1260-1360 | ≤1.4 | |
| Pass Band @1460-1600 | ≤1.4 | ||
| Pass Band @1600-1625 | ≤3.4 | ||
| Reflect Band @1644.5~1655.5 | ≥21 | ||
| Return Loss（dB） | Reflect Band @1260-1360 | ≥35 | |
| Reflect Band @1460-1600 | ≥30 | ||
| Reflect Band @1600~1625 | ≥20 | ||
| Reflect Band @1644.5~1655.5 | ≤1.0 | ||
| Polarization Dependent Loss（dB） | ≤0.3 | ||
| TDL (dB) | ≤0.5 | ||
| Ripple (dB) | ≤0.5 | ||
| Maximum Optical Power Handing (dBm) | 27 | ||
| Plug Times (Times) | 500 | ||
| Input/Output Connectors | *SC/APC | ||
*Note:? SC/UPC, LC/UPC and LC/APC type are all available on request.
Absolute Maximum Ratings
Parameters ? | Conditions ? | Specifications ? | Unit | |
Min. | Max. | |||
Operating ? Temperature | Device ? Not Powered on Heater Element | -20 | 75 | oC |
Operating ? Humidity | Non-Condensing ? Environment | 0 | 95 | %RH |
Storage ? Temperature | Device ? Not Powered on Heater Element | -40 | 85 | oC |
Storage ? Humidity | Non-Condensing ? Environment | 0 | 95 | %RH |
