Description
Parameters
Product Highlights
MTP PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Cable?Jacket?Available?in?OFNP?and?LSZH?Fire?Rating
Custom?Lengths?and?Colors?Available
Simple?Pinning?and?Polarity?Reconfiguration
Ideal?for?40G/100G?Indoor?Connections?
| Cnnector | MTP Pro | Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm | Cable Jacket | OFNP/LSZH |
| 40/100G Ethernet Distance | 150m @ 850nm | 10G Ethernet Distance | 400m @ 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Trunk Diameter | 3.0mm-17.3mm | Installation Tensile Load | 66N |
| Operating Temperature | -10~+70℃ | Storage?Temperature | -40~+85℃ |

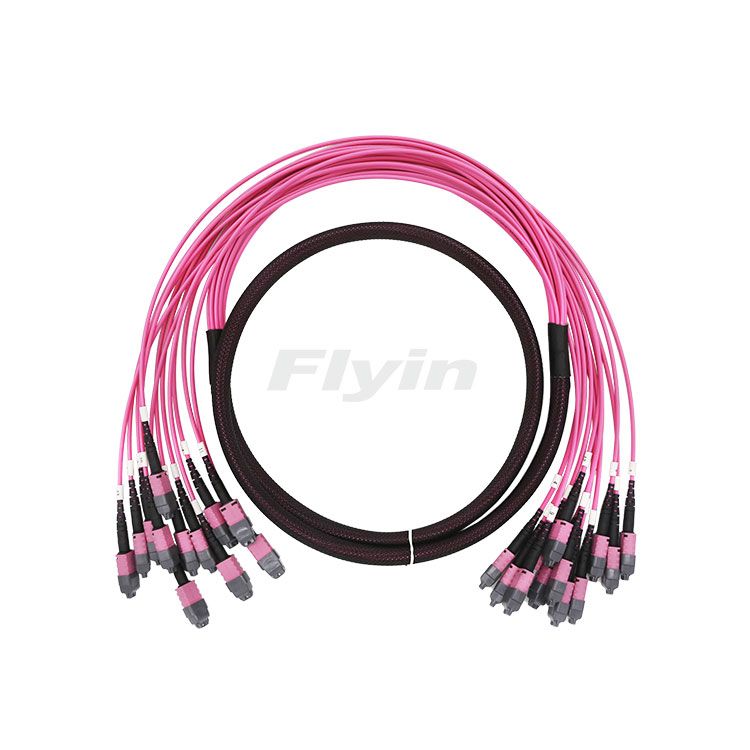

The MTP? PRO patch cord is bend-insensitive and pre-terminated with MTP? PRO connectors, factory polished for low loss performance.
Product Highlights
MTP PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Cable?Jacket?Available?in?OFNP?and?LSZH?Fire?Rating
Custom?Lengths?and?Colors?Available
Simple?Pinning?and?Polarity?Reconfiguration
Ideal?for?40G/100G?Indoor?Connections?
| Cnnector | MTP Pro | Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm | Cable Jacket | OFNP/LSZH |
| 40/100G Ethernet Distance | 150m @ 850nm | 10G Ethernet Distance | 400m @ 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Trunk Diameter | 3.0mm-17.3mm | Installation Tensile Load | 66N |
| Operating Temperature | -10~+70℃ | Storage?Temperature | -40~+85℃ |
