Description
Parameters
| Features | Applications |
| Low insertion loss | Optical amplifer |
| Wide band,high isolation | Metro area network |
| High extinction ratio | Wavelength add/drop |
| Compact in-line package | Dispersion compensation |
| High stability and reliability | Bi-directional communication |
| Epoxy free on optical path |

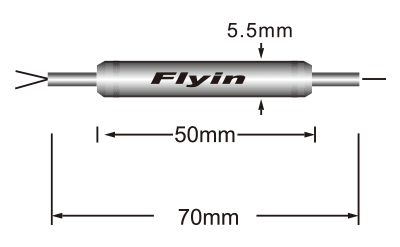

Package Dimension
| Parameter | Specification |
| Configuration | Port1 to Port2, Por2 to Port3 |
| Operation Wavelength（nm） | 1310 or 1550 or Specify |
| Bandwidth (nm) | ±30 |
| Insertion Loss (@23℃)（dB） | ≤1.0 |
| Extinction Ratio?(@23℃)（dB） | ≥18 |
| Isolation?(@23℃)（dB） | ≥40 |
| Return Loss（dB） | ≥50 |
| Fiber Type | PM1310 or PM1550 or Specify |
| Crosstalk (dB) | ≥50 |
| Maximum Power Handing（mW） | 300 or Specify |
| Operation Temperature(℃) | -5~+50 |
| Storage Temperature(℃) | -40~+85 |
| Dimension（mm） | Φ5.5×L50 |
For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
Specifications may change without notice.

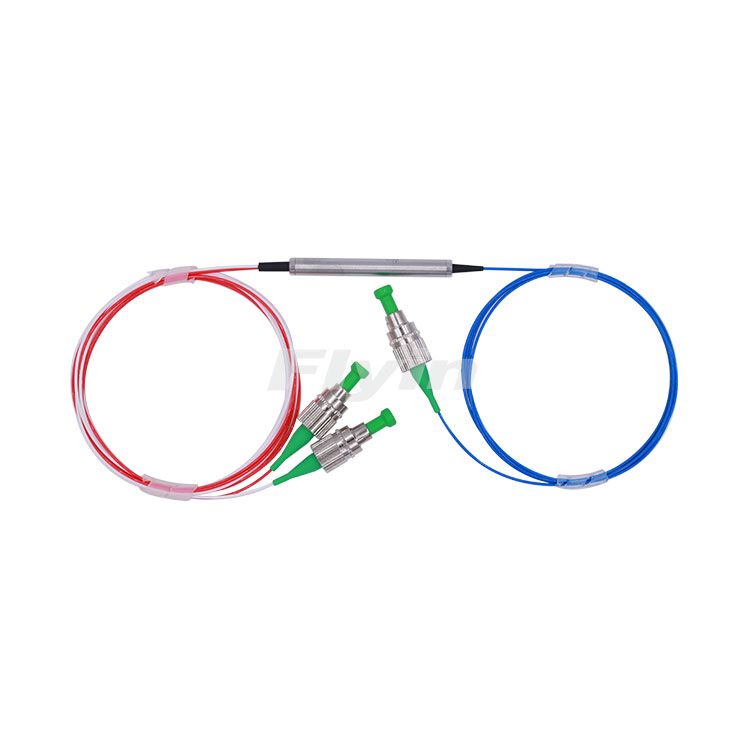

The PM optical circulator is a 3 port fiber optic device built with PM panda fiber. It transmits a signal from port1 to port 2 and another signal from port 2 to port 3 while maintaining the polarization. The PM Circulator features low insertion loss, high isolation between ports, low PDL, high extinction ratio and high reliability and stability.
| Features | Applications |
| Low insertion loss | Optical amplifer |
| Wide band,high isolation | Metro area network |
| High extinction ratio | Wavelength add/drop |
| Compact in-line package | Dispersion compensation |
| High stability and reliability | Bi-directional communication |
| Epoxy free on optical path |
Package Dimension
| Parameter | Specification |
| Configuration | Port1 to Port2, Por2 to Port3 |
| Operation Wavelength（nm） | 1310 or 1550 or Specify |
| Bandwidth (nm) | ±30 |
| Insertion Loss (@23℃)（dB） | ≤1.0 |
| Extinction Ratio?(@23℃)（dB） | ≥18 |
| Isolation?(@23℃)（dB） | ≥40 |
| Return Loss（dB） | ≥50 |
| Fiber Type | PM1310 or PM1550 or Specify |
| Crosstalk (dB) | ≥50 |
| Maximum Power Handing（mW） | 300 or Specify |
| Operation Temperature(℃) | -5~+50 |
| Storage Temperature(℃) | -40~+85 |
| Dimension（mm） | Φ5.5×L50 |
For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
Specifications may change without notice.
