Description
Parameters
| Features | Applications |
| Wide Operating Wavelength Range | System Monitoring |
| Low inertion loss | WDM Network |
| Ultra Flat Wide Passband | Transmitters and Fiber lasers |
| High Channel Isolation | Fiber Optical amplifier |
| High stability and reliability | Fiberoptic Instruments |
| Epoxy-free on Optical Path |
Package Dimension
| Parameter | FWDM 54 | FWDM 59 | |
| Pass Band Wavelength Range（nm） | 1530~1565 | 1525~1600 | |
| Reflect Band Wavelength Range（nm） | 1450~1490 | 965~1000 | |
| Insertion Loss（dB） | Pass?Channel | ≤0.6 | ≤0.9 |
| Reflect?Channel | ≤0.5 | ≤0.7 | |
| Insertion Loss Variation（dB） | ≤0.3 | ||
| Isolation（dB） | Pass?Channel | ≥25 | ≥30 |
| Reflect?Channel | ≥15 | ≥15 | |
| Inertion Loss Temperature Sensitivity(dB) | ≤0.3 | ||
| Polarization Dependent Loss（dB） | ≤0.1 | ||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||
| Directivity (dB) （dB） | ≥50 | ||
| Return Loss（dB） | ≥50 | ||
| Maximum Power Handling（mW） | 500 | ||
| Opterating Temperature (℃) | -10~+70 | ||
| Storage Temperature(℃) | -40~+85 | ||
| Fiber Type | ? ? ? ? ? ? ? ? ? ? ? ?Corning SMF-28e fiber? ? ? ? ? ? ? ? ? ?? | Corning HI 1060 fiber at Common & Reflection port, ?SMF-28e fiber at pass port | |
| Package Dimention(mm) | For 250μm, 900μm | Φ5.5xL38 | |
| For2.0mm, 3.0mm | L90xW20xH10 | ||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.

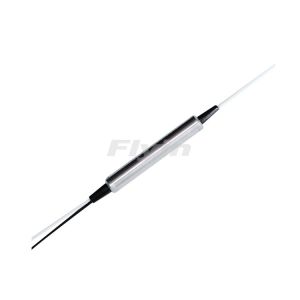

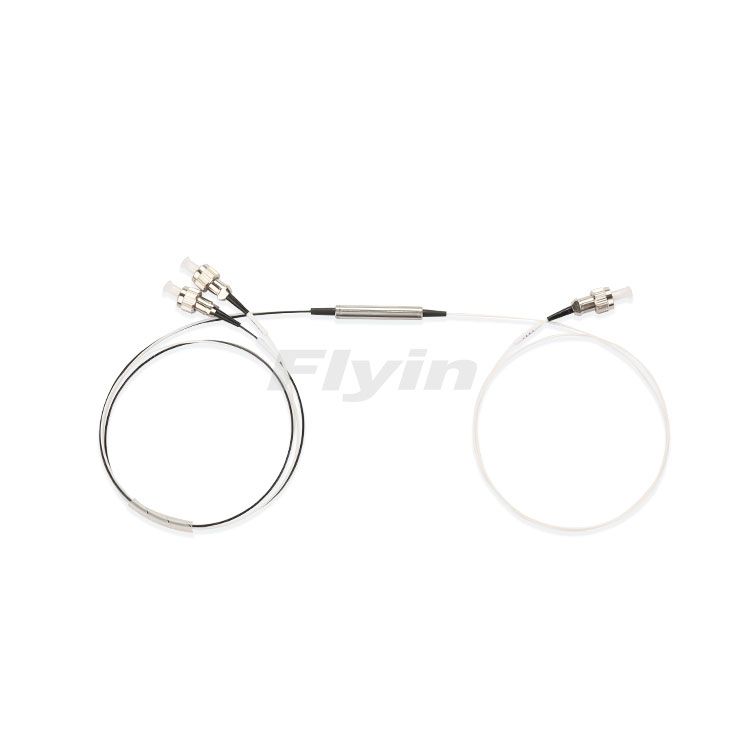

Flyin optronics' Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
| Features | Applications |
| Wide Operating Wavelength Range | System Monitoring |
| Low inertion loss | WDM Network |
| Ultra Flat Wide Passband | Transmitters and Fiber lasers |
| High Channel Isolation | Fiber Optical amplifier |
| High stability and reliability | Fiberoptic Instruments |
| Epoxy-free on Optical Path |

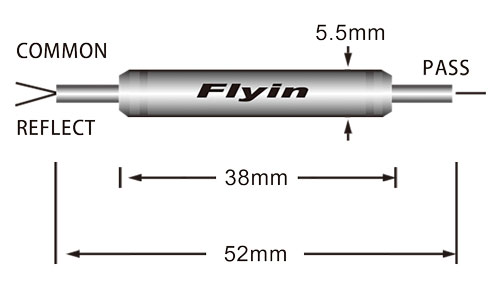

Package Dimension
| Parameter | FWDM 54 | FWDM 59 | |
| Pass Band Wavelength Range（nm） | 1530~1565 | 1525~1600 | |
| Reflect Band Wavelength Range（nm） | 1450~1490 | 965~1000 | |
| Insertion Loss（dB） | Pass?Channel | ≤0.6 | ≤0.9 |
| Reflect?Channel | ≤0.5 | ≤0.7 | |
| Insertion Loss Variation（dB） | ≤0.3 | ||
| Isolation（dB） | Pass?Channel | ≥25 | ≥30 |
| Reflect?Channel | ≥15 | ≥15 | |
| Inertion Loss Temperature Sensitivity(dB) | ≤0.3 | ||
| Polarization Dependent Loss（dB） | ≤0.1 | ||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||
| Directivity (dB) （dB） | ≥50 | ||
| Return Loss（dB） | ≥50 | ||
| Maximum Power Handling（mW） | 500 | ||
| Opterating Temperature (℃) | -10~+70 | ||
| Storage Temperature(℃) | -40~+85 | ||
| Fiber Type | ? ? ? ? ? ? ? ? ? ? ? ?Corning SMF-28e fiber? ? ? ? ? ? ? ? ? ?? | Corning HI 1060 fiber at Common & Reflection port, ?SMF-28e fiber at pass port | |
| Package Dimention(mm) | For 250μm, 900μm | Φ5.5xL38 | |
| For2.0mm, 3.0mm | L90xW20xH10 | ||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
