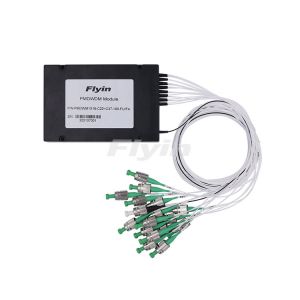

Description
Parameters
| Features | Applications |
| Low insertion loss | Fiber sensing |
| Wide pass band | Coherent optics |
| High Channel isolation | Fiber laser |
| High stability and reliability | PM EDFA |
| Epoxy free on optical path | |
| Access network |
| Parameter | Specification | |
| Operating Wavelength (nm) | ITU Grid | |
| Bandwidth (@-0.5dB) (nm) | ≥0.22(100G)/≥0.50(200G) | |
| Pass Channel Insertion Loss (@23℃)(dB) | ≤1.0 | |
| Reflection?Channel Insertion Loss (@23℃)(dB) | ≤0.4 | |
| Channel Ripple?(dB) | ≤0.5 | |
| Extinction Ratio?(@23℃)(dB) | ≥18 | |
| Isolation?(dB) | Adjacent | >30 |
| Non-adjacent | >40 | |
| Reflection | >12 | |
| Directivity (dB) | >45 | |
| Return Loss?(dB) | >45 | |
| Power Handling (mW) | 300 or Specify | |
| Operating Temperature (℃) | -5~+70 | |
| Storage?Temperature (℃) | -40~+85 | |
| Pacakge Dimension (mm) | Φ5.5xL38 | |
Note:
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
Specifications may change without notice.

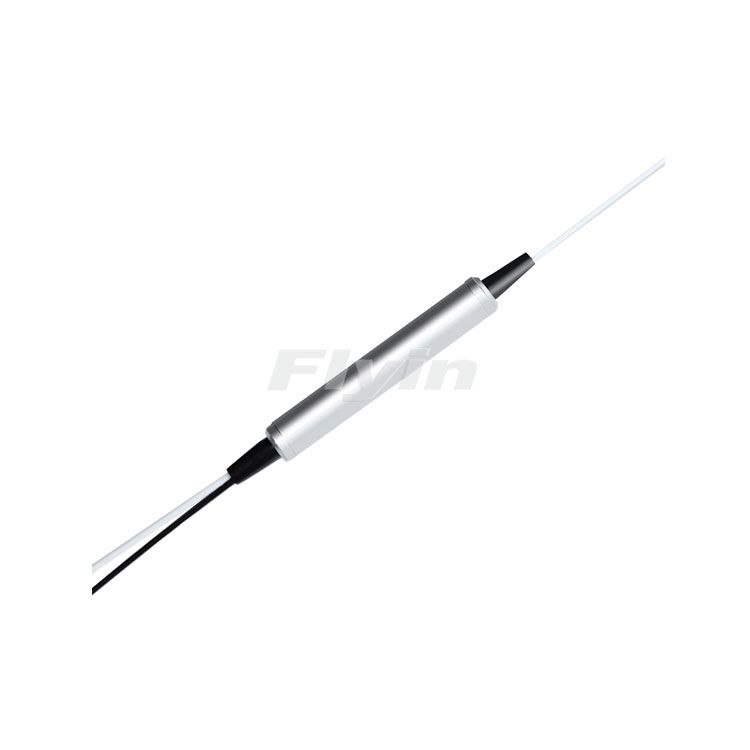

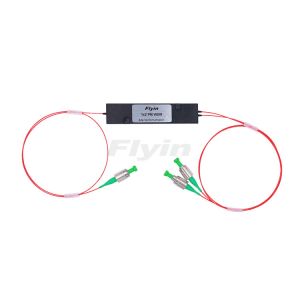

The Polarization Maintaining Dense Wavelength Division Multiplexer (PMDWDM) is manufactured by using thin film filter (TFF) technology. It provides wide passband, low insertion loss, high wavelength isolation and environmentally stable. It can be used as a single channel add or drop Multiplexers in DWDM systems and sensor systems.
| Features | Applications |
| Low insertion loss | Fiber sensing |
| Wide pass band | Coherent optics |
| High Channel isolation | Fiber laser |
| High stability and reliability | PM EDFA |
| Epoxy free on optical path | |
| Access network |
| Parameter | Specification | |
| Operating Wavelength (nm) | ITU Grid | |
| Bandwidth (@-0.5dB) (nm) | ≥0.22(100G)/≥0.50(200G) | |
| Pass Channel Insertion Loss (@23℃)(dB) | ≤1.0 | |
| Reflection?Channel Insertion Loss (@23℃)(dB) | ≤0.4 | |
| Channel Ripple?(dB) | ≤0.5 | |
| Extinction Ratio?(@23℃)(dB) | ≥18 | |
| Isolation?(dB) | Adjacent | >30 |
| Non-adjacent | >40 | |
| Reflection | >12 | |
| Directivity (dB) | >45 | |
| Return Loss?(dB) | >45 | |
| Power Handling (mW) | 300 or Specify | |
| Operating Temperature (℃) | -5~+70 | |
| Storage?Temperature (℃) | -40~+85 | |
| Pacakge Dimension (mm) | Φ5.5xL38 | |
Note:
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
Specifications may change without notice.
