Description
Parameters
| Features | Applications |
| Low insertion loss | EDFA application |
| Wide pass band | FTTH system |
| High isolation | |
| High stability and reliability |
| Parameter | 4 Channels | 8?Channels | 16 Channels | 32?Channels | |
| CATV Wavelength Range (nm) | 1540~1620 | ||||
| PON Wavelength Range (nm) | 1260~1500 | ||||
| Insertion Loss (dB) | CATV-COM | ≤8 | ≤11.6 | ≤14.5 | ≤17.8 |
| COM-PON | ≤1.6 | ≤1.6 | ≤0.6 | ≤0.6 | |
| Isolation (dB) | CATV-COM(@PON) | ≥30 | |||
| COM-PON(@CATV) | ≥15 | ||||
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 | ||||
| Polarization Dependent Loss (dB) | ≤0.5 | ||||
| Polarization Mode Loss?(ps) | ≤0.1 | ||||
| Directivity?(dB) | ≥50 | ||||
| Return Loss?(dB) | ≥45 | ||||
| Maximum Power Handing (mW) | 300 | ||||
| Operating Temperature (℃) | -10~+70 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Package Dimension (mm) | 1x4 | L100 x W80 x H10 | |||
| 1x8 | L120 x W80 x H18 | ||||
| 1x16 | L140 x W114 x H18 | ||||
| 1x32 | 19”1U Rackmount | ||||
Above specifications are for devices without connector.
Specifications may change without notice.

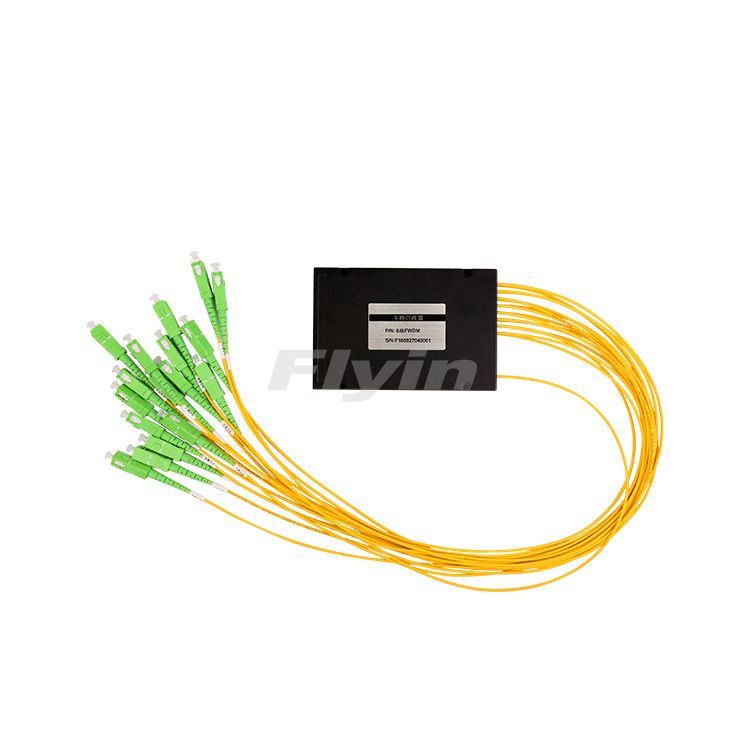

Flyin's 1310/1490/1550 CATV+PON WDM with wide bandwidth, high isolation and low insrtion loss, produts are widely used in EDFA and FTTH system.
| Features | Applications |
| Low insertion loss | EDFA application |
| Wide pass band | FTTH system |
| High isolation | |
| High stability and reliability |
| Parameter | 4 Channels | 8?Channels | 16 Channels | 32?Channels | |
| CATV Wavelength Range (nm) | 1540~1620 | ||||
| PON Wavelength Range (nm) | 1260~1500 | ||||
| Insertion Loss (dB) | CATV-COM | ≤8 | ≤11.6 | ≤14.5 | ≤17.8 |
| COM-PON | ≤1.6 | ≤1.6 | ≤0.6 | ≤0.6 | |
| Isolation (dB) | CATV-COM(@PON) | ≥30 | |||
| COM-PON(@CATV) | ≥15 | ||||
| Insertion Loss Temperature Sensitivity (dB) | ≤0.5 | ||||
| Polarization Dependent Loss (dB) | ≤0.5 | ||||
| Polarization Mode Loss?(ps) | ≤0.1 | ||||
| Directivity?(dB) | ≥50 | ||||
| Return Loss?(dB) | ≥45 | ||||
| Maximum Power Handing (mW) | 300 | ||||
| Operating Temperature (℃) | -10~+70 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Package Dimension (mm) | 1x4 | L100 x W80 x H10 | |||
| 1x8 | L120 x W80 x H18 | ||||
| 1x16 | L140 x W114 x H18 | ||||
| 1x32 | 19”1U Rackmount | ||||
Above specifications are for devices without connector.
Specifications may change without notice.
