Description
Parameters
| Features | Application |

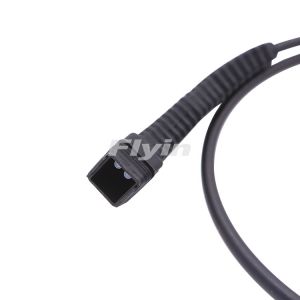

| Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism. | Fiber-to-the-Antenna (FTTA) |

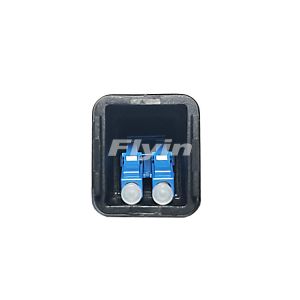

| Built-in socket with square or hexagonal flange. | Automation and industrial cabling. |
| Resist strong pressure and stretching. | Naval and ship building, Broadcast. |
| Can effectively adapt to harsh porous environment. |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.15 | 0.10 |
| Max. Insertion Loss（dB） | 0.3 | 0.3 |
| Return Loss（In/Out）（dB） | UPCC≥50,?APC≥60 | ≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | / | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |

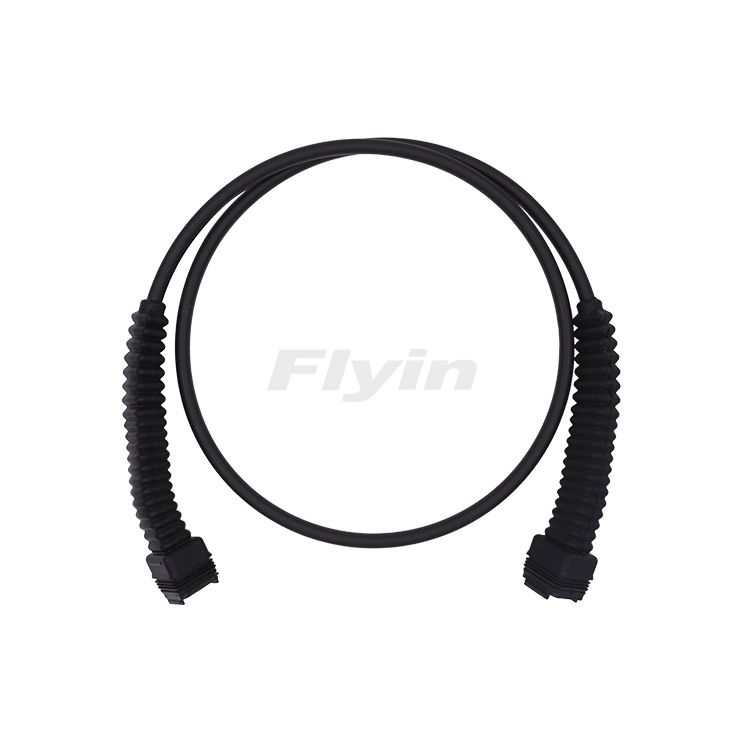

Flyin NSN harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.
| Features | Application |
| Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism. | Fiber-to-the-Antenna (FTTA) |
| Built-in socket with square or hexagonal flange. | Automation and industrial cabling. |
| Resist strong pressure and stretching. | Naval and ship building, Broadcast. |
| Can effectively adapt to harsh porous environment. |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.15 | 0.10 |
| Max. Insertion Loss（dB） | 0.3 | 0.3 |
| Return Loss（In/Out）（dB） | UPCC≥50,?APC≥60 | ≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | / | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |
