Description
Parameters
| Features | Application |
| Flexible, water blocked. | FTTA Projects. |
| UV resistant. | BBU, RRU. |
| Easy to lay and splice. | Wireless base station horizontal and vertical cabling. |
| With big capacity data transmission. |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.15 | 0.10 |
| Max. Insertion Loss（dB） | 0.3 | 0.3 |
| Return Loss（In/Out）（dB） | UPCC≥50,?APC≥60 | ≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | IP67 | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |

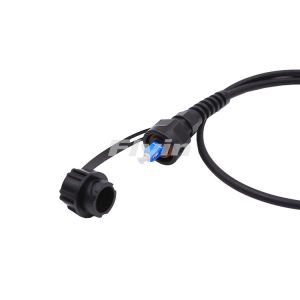

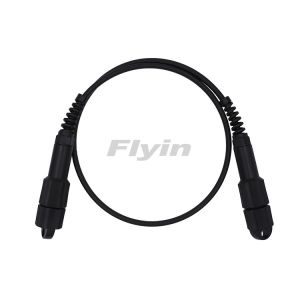

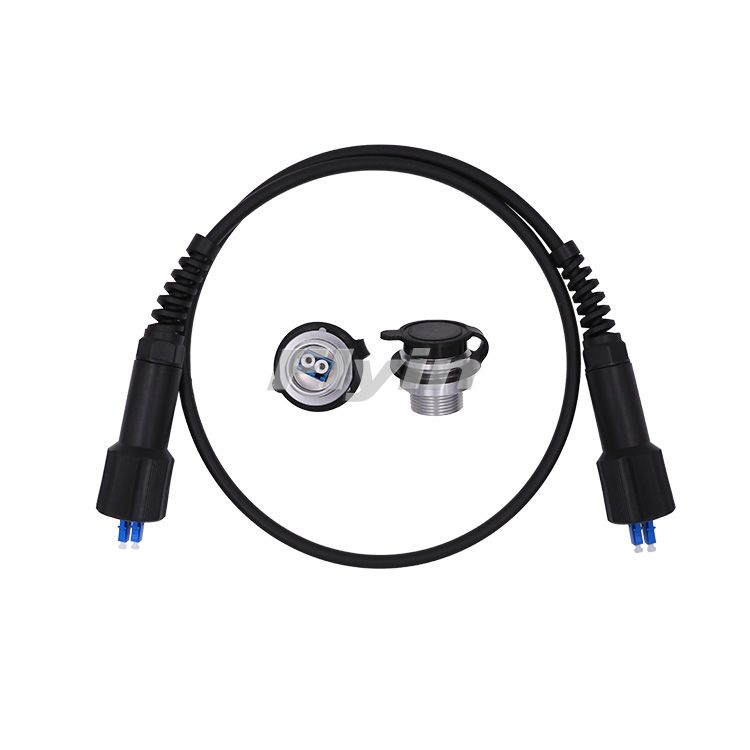

Flyin PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device.
| Features | Application |
| Flexible, water blocked. | FTTA Projects. |
| UV resistant. | BBU, RRU. |
| Easy to lay and splice. | Wireless base station horizontal and vertical cabling. |
| With big capacity data transmission. |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.15 | 0.10 |
| Max. Insertion Loss（dB） | 0.3 | 0.3 |
| Return Loss（In/Out）（dB） | UPCC≥50,?APC≥60 | ≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | IP67 | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |
