Description
Parameters
| Features | Application |
| Cost effective solution for in house termination. | Multi-purpose outdoor |
| Low insertion loss and added loss. | For connection between distribution box and RRH |
| IP67 water, dust proof and corrosion resistant. | Deployment in Remote Radio Head cell tower. |
| The material in the jumper cable are all-weather and UV-resistant |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.20 | 0.15 |
| Max. Insertion Loss（dB） | Low IL≤0.35, Standard IL≤0.5 | Low IL≤0.35, Standard IL≤0.5 |
| Return Loss（In/Out）（dB） | APC≥50 | Standard IL UPC≥25, Low IL UPC≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | IP68 | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |

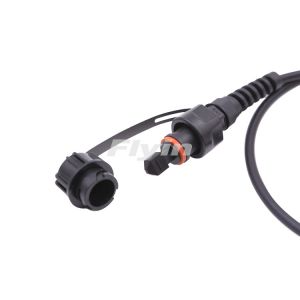

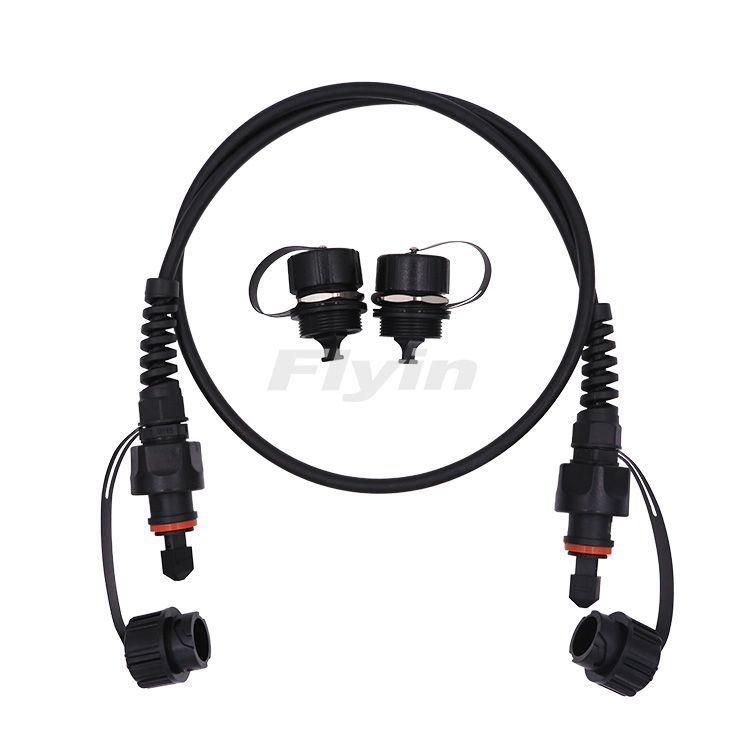

ODVA MPO/MTP outdoor fiber optic cable are widely used in multi-purpose outdoor, for connection between distribution box and RRH, and deployment in Remote Radio Head cell tower.
| Features | Application |
| Cost effective solution for in house termination. | Multi-purpose outdoor |
| Low insertion loss and added loss. | For connection between distribution box and RRH |
| IP67 water, dust proof and corrosion resistant. | Deployment in Remote Radio Head cell tower. |
| The material in the jumper cable are all-weather and UV-resistant |
| Specification | SM | MM |
| Operating Wavelength（nm） | 1310, 1550 | 850， 1300 |
| Typical Insertion Loss（dB） | 0.20 | 0.15 |
| Max. Insertion Loss（dB） | Low IL≤0.35, Standard IL≤0.5 | Low IL≤0.35, Standard IL≤0.5 |
| Return Loss（In/Out）（dB） | APC≥50 | Standard IL UPC≥25, Low IL UPC≥35 |
| Interchangeability（dB） | ≤0.2 | ≤0.2 |
| Repeatability（dB） | ≤0.1 | |
| Operating Temperature（℃） | -10 ～ +75 | |
| Storage Temperature（℃） | -40 ～? +85 | |
| Fiber Type | OS2/OM1 OM2? OM3? OM4 OM5 | |
| Fiber Diameter (mm) | Φ5.0mm, Φ7.0mm | |
| Waterproof Grade | IP68 | |
| Flame Retardant Grade | UL94V-0 | |
| Mechanical Durability (Times) | 500 times | |
| Cable Tension (N) | ≥15N | |
