Description
Parameters
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavelength Routing |
| High stability and reliability | Fiber Optical Amplifier |
| Epoxy free on optical path | CATV Fiberoptic System |
Package Dimension
| Parameter | 4-Channels | 8-Channels | 16-Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU Grid | ||||||
| Channel Spacing（GHz） | 100 / 200 | ||||||
| Channel Passband (@-0.5dB bandwidth(nm) | ≥0.22（100G）/?≥0.5（200G） | ||||||
| Insertion Loss（dB） | ≤1.8 | ≤3.0 | Low≤3.5? ?Standard≤5.0 | ||||
| Channel Ripple（dB） | ≤0.5 | ||||||
| Isolation（dB） | Adjacent | ≥30 | |||||
| Non-adjacent | ≥40 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.5 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.001 | ||||||
| Polarization Dependent Loss（dB） | ≤0.2 | ||||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||||
| Directivity（dB） | ≥45 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension(mm) | L100×W80×H10 | L120×W80×H18 | |||||
| 19" 1U Rackmount | |||||||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.

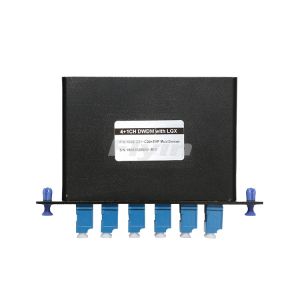

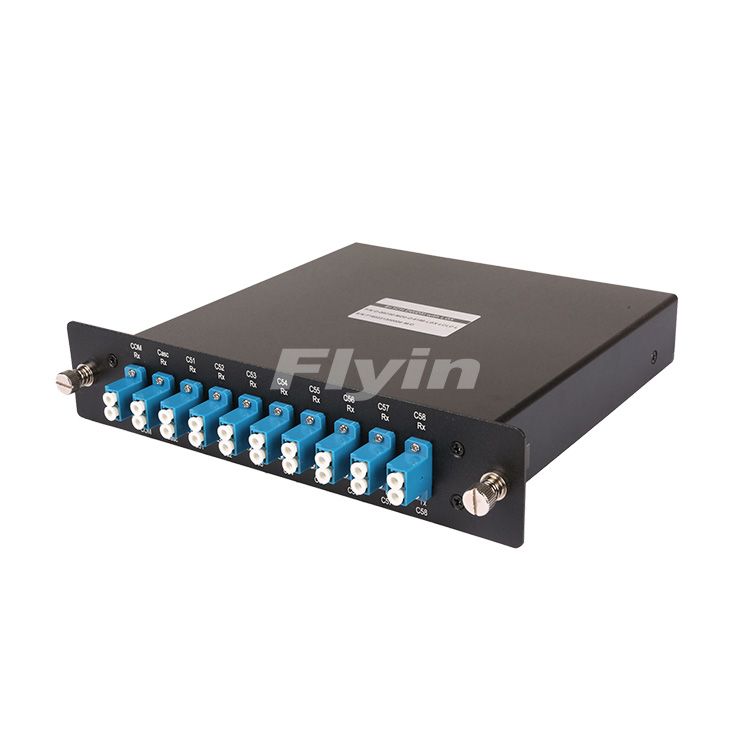

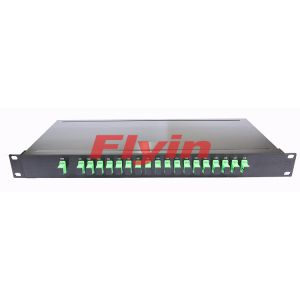

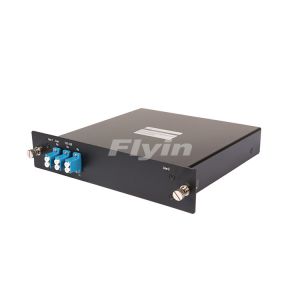

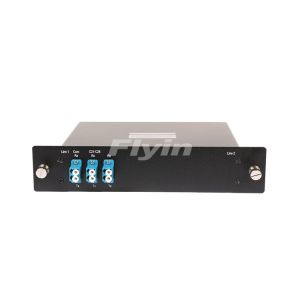

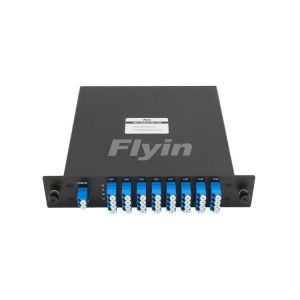

Flyin Optronics’ 100GHz/200 GHz dense wavelength division multiplexer (DWDM module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
| Channel Spacing： |
100GHz 200GHz |
| Number of Channels： |
4 Channels 8 Channels 16 Channels N Channels Specify |
| Package： |
ABS Box Rackmount LGX Box Insert Box Specify |
| Fiber Diameter： |
250μm 900μm 2.0mm 3.0mm |
| Fiber Length： |
1m 2m Specify |
| Connector： |
None FC/APC FC/PC SC/APC SC/PC LC/APC LC/UPC ST Specify |
| 1st Channel： |
C21 C22 C23 C24 C25 C26 C27 C28 C29 C30 C31 C32 C33 C34 C35 C36 C37 C38 C39 C40 C41 C42 C43 C44 C45 C46 C47 C48 C49 C50 C51 C52 C53 C54 C55 C56 C57 C58 C59 C60 C61 |
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavelength Routing |
| High stability and reliability | Fiber Optical Amplifier |
| Epoxy free on optical path | CATV Fiberoptic System |

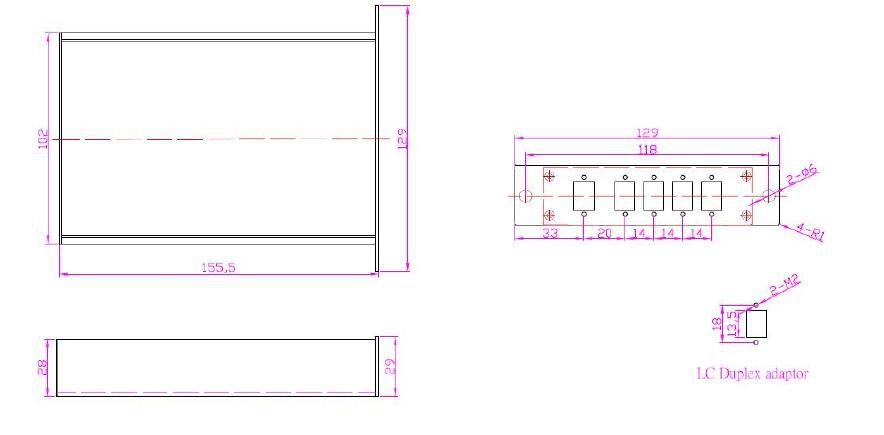

Package Dimension
| Parameter | 4-Channels | 8-Channels | 16-Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU Grid | ||||||
| Channel Spacing（GHz） | 100 / 200 | ||||||
| Channel Passband (@-0.5dB bandwidth(nm) | ≥0.22（100G）/?≥0.5（200G） | ||||||
| Insertion Loss（dB） | ≤1.8 | ≤3.0 | Low≤3.5? ?Standard≤5.0 | ||||
| Channel Ripple（dB） | ≤0.5 | ||||||
| Isolation（dB） | Adjacent | ≥30 | |||||
| Non-adjacent | ≥40 | ||||||
| Insertion Loss Temperature Sensitivity(dB) | ≤0.5 | ||||||
| Wavelength Temperature Shifting (nm/℃) | ≤0.001 | ||||||
| Polarization Dependent Loss（dB） | ≤0.2 | ||||||
| Polarization Mode Dispersion（ps） | ≤0.1 | ||||||
| Directivity（dB） | ≥45 | ||||||
| Return Loss（dB） | ≥45 | ||||||
| Maximum Power Handling（mW） | 300 | ||||||
| Opterating Temperature(℃) | -10~+70 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension(mm) | L100×W80×H10 | L120×W80×H18 | |||||
| 19" 1U Rackmount | |||||||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
