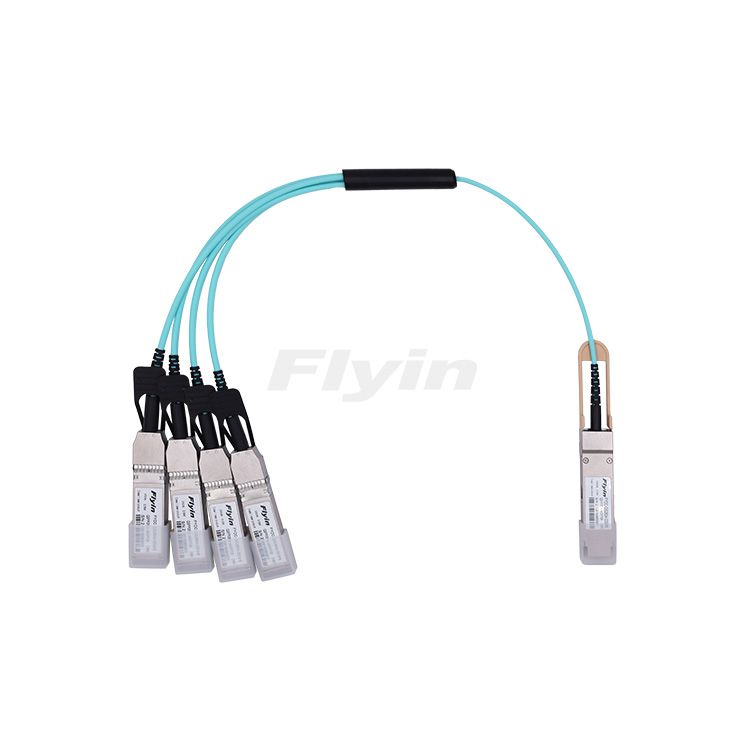

100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable OM3

This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC is terminated with a QSFP28 module at one end and four SFP28 modules at the other. With the QSFP28 terminal, it offers 4 independent data transmission channels and 4 data receiving channels via multimode ribbon fibers, each capable of 25Gb/s operation.

Select at least one parameter!! or inquire now

Related Products

Description

Parameters

Features	Application
4 independent full-duplex channels.	100GEthernet?.
Up to 25.78Gb/s data rate perchannel	Infiniband EDR.
Low power consumption.
QSFP28 and SFP28 MSA compliant.

The production workshop show

Model	Rate	Interface	Transmission Distance
FYOC-PP96-**MB	10Gb/s to 10Gb/s	SFP+ to SFP+	**M(<300M)
FYOC-Q2801-**MB	25Gb/s?to 25Gb/s	SFP28 to SFP28	**M(<100M)
FYOC-QQA4-**MB	40Gb/s?to 40Gb/s	QSFP+ to QSFP+	**M(<300M)
FYOC-QPA4-**MB	40Gb/s?to 4x10Gb/s	QSFP+ to 4xSFP+	**M(<300M)
FYOC-Q2804-**MB	100Gb/s?to 100Gb/s	QSFP28 to QSFP28	**M(<100M)
FYOC-QS2804-**MB	100Gb/s?to 4x25Gb/s	QSFP28 to 4xSFP28	**M(<100M)
FYOC-Q56F4-**MB	200Gb/s?to 200Gb/s	QSFP56 to QSFP56	**M(<100M)
FYOC-QQ56F4-**MB	200Gb/s?to 2x100Gb/s	QSFP56 to 2xQSFP56	**M(<100M)
FYOC-QD256-**MB	400Gb/s?to 2x200Gb/s	QSFP-DD to 2xQSFP56	**M(<30M)
FYOC-QDD-**MB	400Gb/s?to 400Gb/s	QSFP-DD to QSFP-DD	**M(<100M)
FYOC-QD456-MB	400Gb/s?to 4x100Gb/s	QSFP-DD to 4xQSFP56	**M(<50M)
FYOC-OSS-**MB	400Gb/s?to 400Gb/s	OSFP to OSFP	**M(<30M)
FYOC-QH2Q56-**MB	400Gb/s?to 2x200Gb/s	QSFP112 to 2xQSFP56	**M(<30M)
FYOC-QH4Q56-**MB	400Gb/s?to 4x100Gb/s	QSFP112 to 4xQSFP56	**M(<30M)
FYOC-OSQD-**MB	400Gb/s?to 400Gb/s	OSFP to QSFP-DD	**M(<30M)
FYOC-QDD-**MB	800Gb/s?to 800Gb/s	QSFP-DD to QSFP-DD	**M(<50M)
FYOC-OSS-**MB	800Gb/s?to 800Gb/s	OSFP to OSFP	**M(<30M)
FYOC-OS2S-**MB	800Gb/s?to 2x400Gb/s	OSFP to 2xOSFP	**M(<30M)
FYOC-OS4S-**MB	800Gb/s?to 4x200Gb/s	OSFP to 4xOSFP	**M(<30M)

Remark: Above “**”refers to the corresponding meters.

Recent browsing of products

100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable OM3

Products

Parameters

1/1

100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable OM3

This product is a high data rate parallel active optical cable (AOC), to overcome the bandwidth limitation of traditional copper cable. The AOC is terminated with a QSFP28 module at one end and four SFP28 modules at the other. With the QSFP28 terminal, it offers 4 independent data transmission channels and 4 data receiving channels via multimode ribbon fibers, each capable of 25Gb/s operation.

Click to add a consultation

Features	Application
4 independent full-duplex channels.	100GEthernet?.
Up to 25.78Gb/s data rate perchannel	Infiniband EDR.
Low power consumption.
QSFP28 and SFP28 MSA compliant.

The production workshop show

Recent browsing of products

100G QSFP28 to 4X25G SFP28 Breakout Active Optical Cable OM3

Model	Rate	Interface	Transmission Distance
FYOC-PP96-**MB	10Gb/s to 10Gb/s	SFP+ to SFP+	**M(<300M)
FYOC-Q2801-**MB	25Gb/s?to 25Gb/s	SFP28 to SFP28	**M(<100M)
FYOC-QQA4-**MB	40Gb/s?to 40Gb/s	QSFP+ to QSFP+	**M(<300M)
FYOC-QPA4-**MB	40Gb/s?to 4x10Gb/s	QSFP+ to 4xSFP+	**M(<300M)
FYOC-Q2804-**MB	100Gb/s?to 100Gb/s	QSFP28 to QSFP28	**M(<100M)
FYOC-QS2804-**MB	100Gb/s?to 4x25Gb/s	QSFP28 to 4xSFP28	**M(<100M)
FYOC-Q56F4-**MB	200Gb/s?to 200Gb/s	QSFP56 to QSFP56	**M(<100M)
FYOC-QQ56F4-**MB	200Gb/s?to 2x100Gb/s	QSFP56 to 2xQSFP56	**M(<100M)
FYOC-QD256-**MB	400Gb/s?to 2x200Gb/s	QSFP-DD to 2xQSFP56	**M(<30M)
FYOC-QDD-**MB	400Gb/s?to 400Gb/s	QSFP-DD to QSFP-DD	**M(<100M)
FYOC-QD456-MB	400Gb/s?to 4x100Gb/s	QSFP-DD to 4xQSFP56	**M(<50M)
FYOC-OSS-**MB	400Gb/s?to 400Gb/s	OSFP to OSFP	**M(<30M)
FYOC-QH2Q56-**MB	400Gb/s?to 2x200Gb/s	QSFP112 to 2xQSFP56	**M(<30M)
FYOC-QH4Q56-**MB	400Gb/s?to 4x100Gb/s	QSFP112 to 4xQSFP56	**M(<30M)
FYOC-OSQD-**MB	400Gb/s?to 400Gb/s	OSFP to QSFP-DD	**M(<30M)
FYOC-QDD-**MB	800Gb/s?to 800Gb/s	QSFP-DD to QSFP-DD	**M(<50M)
FYOC-OSS-**MB	800Gb/s?to 800Gb/s	OSFP to OSFP	**M(<30M)
FYOC-OS2S-**MB	800Gb/s?to 2x400Gb/s	OSFP to 2xOSFP	**M(<30M)
FYOC-OS4S-**MB	800Gb/s?to 4x200Gb/s	OSFP to 4xOSFP	**M(<30M)

Remark: Above “**”refers to the corresponding meters.
