Description
Parameters
| Features | Application |
| Support for multi-gigabit data rates up to 10.5Gbps. | 10G Gigabit Ethernet & 10 GbE high performance computer clusters. |
| Wire AWG: AWG30, AWG24. | High density connections between networking equipment. |
| Low power consumption. | End of row/Middle of row switching architectures. |
| Small diameter cable design. | Data center cabling infrastructure. |
| Compatible to SFP+ MSA. | Storage Area Networks ( SAN) & Storage Servers. |
Model | Rate | Interface | Sort | Cable Diameter | Transmission Distance |
FYDA-PP-**MB** | 10Gb/s | SFP+ to SFP+ | Passive | **AWG (24/30 Optional) | 24AWG<10m,30AWG<3m |
FYAC-PP-**MB** | 10Gb/s | SFP+ to SFP+ | Active | **AWG (24/28/30 Optional) | 24AWG<15m,28AWG<10m, 30AWG<3m |
FYDA-S28-**MB** | 25Gb/s | SFP28 to SFP28 | Passive | **AWG (26/28/30 Optional) | 26AWG<5m, 28AWG<3m, 30AWG<3m |
FYDA-QQ-**MB** | 40Gb/s | QSFP+ to QSFP+ | Passive | **AWG (26/30 Optional) | 26AWG<7m, 30AWG<3m |
FYDA-QP-**MB** | 40Gb/s | QSFP+ to SFP+ | Passive | **AWG (26/30 Optional) | 26AWG<7m, 30AWG<3m |
FYDA-Q28-**MB** | 100Gb/s | QSFP28 to QSFP28 | Passive | **AWG (26/30 Optional) | 26AWG<5m, 30AWG<3m |
FYDA-QS28-**MB** | 100Gb/s | SFP28 to SFP28 | Passive | **AWG (26/30 Optional) | 26AWG<5m, 30AWG<3m |
FYDA-QQ56-**MB** | 200Gb/s | QSFP56?to QSFP56 | Passive | **AWG(26/30 Optional) | 26AWG<3m,30AWG<1.5m |
FYDA-QQ56-**MB** | 200Gb/s | QSFP56?to 2*QSFP56 | Passive | **AWG(26/30 Optional) | 26AWG<3m, 30AWG<1.5m |
FYDA-QDD-**MB** | 400Gb/s | QSFP-DD to QSFP-DD | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD856-**MB** | 400Gb/s | QSFP-DD to ?8xQSFP56 | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD456-**MB** | 400Gb/s | QSFP-DD to 4xQSFP56 | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD2D-**MB** | 400Gb/s | QSFP-DD to 2xQSFP-DD | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
Remark: Above “**”refers to the corresponding meters. “**”refers to the optional cable diameter.

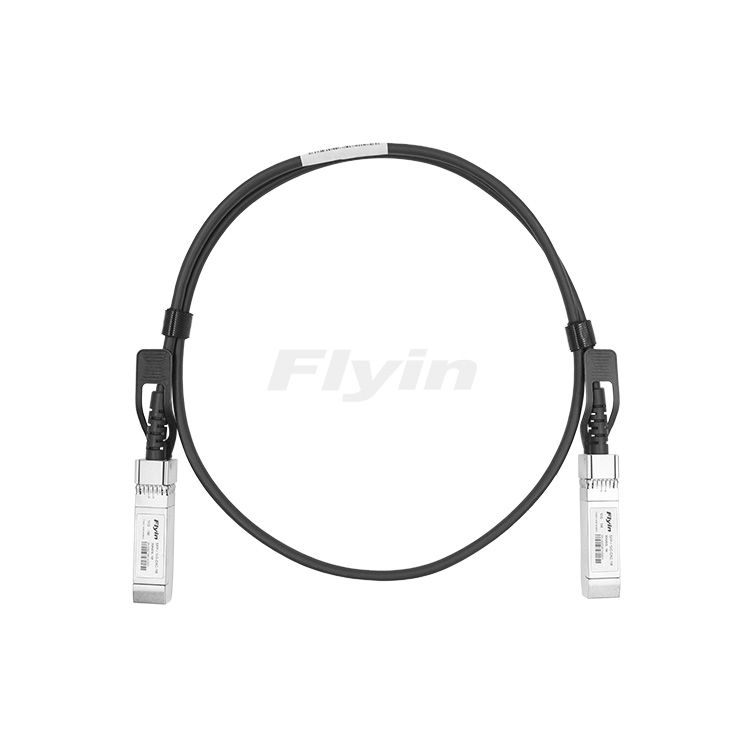

Flyin SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
| Features | Application |
| Support for multi-gigabit data rates up to 10.5Gbps. | 10G Gigabit Ethernet & 10 GbE high performance computer clusters. |
| Wire AWG: AWG30, AWG24. | High density connections between networking equipment. |
| Low power consumption. | End of row/Middle of row switching architectures. |
| Small diameter cable design. | Data center cabling infrastructure. |
| Compatible to SFP+ MSA. | Storage Area Networks ( SAN) & Storage Servers. |
Model | Rate | Interface | Sort | Cable Diameter | Transmission Distance |
FYDA-PP-**MB** | 10Gb/s | SFP+ to SFP+ | Passive | **AWG (24/30 Optional) | 24AWG<10m,30AWG<3m |
FYAC-PP-**MB** | 10Gb/s | SFP+ to SFP+ | Active | **AWG (24/28/30 Optional) | 24AWG<15m,28AWG<10m, 30AWG<3m |
FYDA-S28-**MB** | 25Gb/s | SFP28 to SFP28 | Passive | **AWG (26/28/30 Optional) | 26AWG<5m, 28AWG<3m, 30AWG<3m |
FYDA-QQ-**MB** | 40Gb/s | QSFP+ to QSFP+ | Passive | **AWG (26/30 Optional) | 26AWG<7m, 30AWG<3m |
FYDA-QP-**MB** | 40Gb/s | QSFP+ to SFP+ | Passive | **AWG (26/30 Optional) | 26AWG<7m, 30AWG<3m |
FYDA-Q28-**MB** | 100Gb/s | QSFP28 to QSFP28 | Passive | **AWG (26/30 Optional) | 26AWG<5m, 30AWG<3m |
FYDA-QS28-**MB** | 100Gb/s | SFP28 to SFP28 | Passive | **AWG (26/30 Optional) | 26AWG<5m, 30AWG<3m |
FYDA-QQ56-**MB** | 200Gb/s | QSFP56?to QSFP56 | Passive | **AWG(26/30 Optional) | 26AWG<3m,30AWG<1.5m |
FYDA-QQ56-**MB** | 200Gb/s | QSFP56?to 2*QSFP56 | Passive | **AWG(26/30 Optional) | 26AWG<3m, 30AWG<1.5m |
FYDA-QDD-**MB** | 400Gb/s | QSFP-DD to QSFP-DD | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD856-**MB** | 400Gb/s | QSFP-DD to ?8xQSFP56 | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD456-**MB** | 400Gb/s | QSFP-DD to 4xQSFP56 | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
FYDA-QD2D-**MB** | 400Gb/s | QSFP-DD to 2xQSFP-DD | Passive | **AWG (28/30 Opt.) | 28AWG<3m, 30AWG<1.5m |
Remark: Above “**”refers to the corresponding meters. “**”refers to the optional cable diameter.
