Description
Parameters
| Features | Applications |
| Low?Insertion?loss | FTTH,?PON,?CATV |
| High?Return?Loss | EDFA?&?Raman?Amplifier |
| High?Extinction?Ratio? | Fiber?Sensor |
| Good?channel-to-channel?uniformity | ?Fiber?Optical?Instrument |
| Wide?Operating?Temperature:From?-20℃?to?75℃ | Power?Monitoring?System?????????????????????????????????????????? |
| High?Reliability?and?Stability |
| Parameters | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 |
| Operating?Wavelength（nm） | 1310 or 1550 or Specify | |||||||||
| Insertion?Loss (@23℃)(dB) | ≤3.8 | ≤6.2 | ≤7 | ≤9.4 | ≤10.2 | ≤12.6 | ≤13.5 | ≤15.8 | ≤16.6 | ≤21 |
| Consistency（dB） | ≤0.3 | ≤0.5 | ≤0.4 | ≤0.6 | ≤0.4 | ≤0.8 | ≤0.6 | ≤1.1 | ≤0.8 | ≤1.5 |
| Extinction?Ratio?(@23℃)(dB) | ≥23 | ≥23 | ≥23 | ≥22 | ≥22 | ≥22 | ≥20 | ≥20 | ≥18 | ≥18 |
| Return?Loss(dB) | ≥50 | |||||||||
| Power?Handling?(mW) | 500?or Specify | |||||||||
| Fiber?Type | PM1310 or PM1550?or Specify | |||||||||
| Connector | LC, FC, SC | |||||||||
| Working?axis | Slow?Axis、Fast?Axis?or Specify | |||||||||
| Fiber Length?tolerance（%） | ±10?or Specify | |||||||||
| Operating?Temperature(℃) | -5~70 | |||||||||
| Storage?Temperature(℃) | -45~85 | |||||||||
Note:
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
Specifications may change without notice.

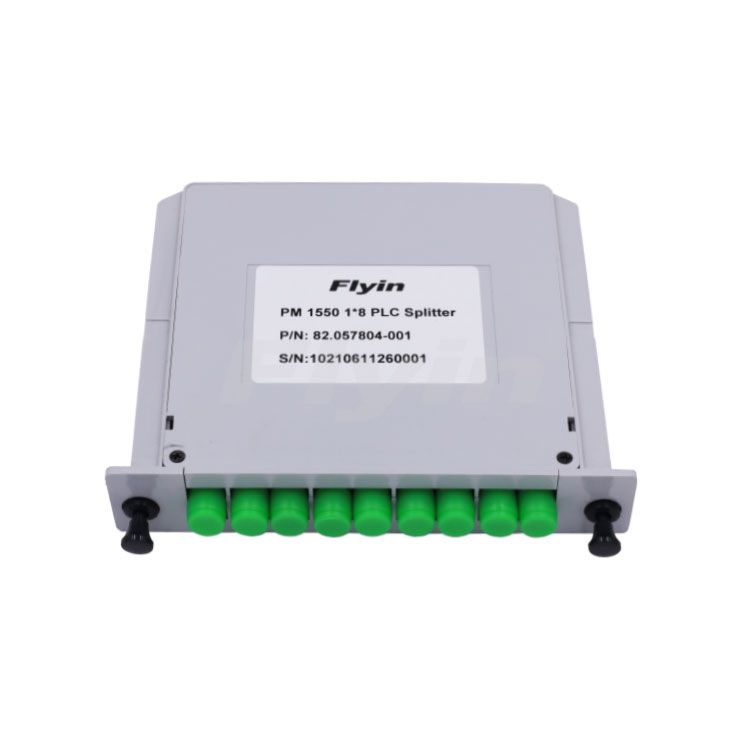

Polarization Maintaining Planar Lightwave Circuit (PLC) Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross?coupling of optical power between the polarization modes.
| Features | Applications |
| Low?Insertion?loss | FTTH,?PON,?CATV |
| High?Return?Loss | EDFA?&?Raman?Amplifier |
| High?Extinction?Ratio? | Fiber?Sensor |
| Good?channel-to-channel?uniformity | ?Fiber?Optical?Instrument |
| Wide?Operating?Temperature:From?-20℃?to?75℃ | Power?Monitoring?System?????????????????????????????????????????? |
| High?Reliability?and?Stability |
| Parameters | 1x2 | 1x3 | 1x4 | 1x6 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 |
| Operating?Wavelength（nm） | 1310 or 1550 or Specify | |||||||||
| Insertion?Loss (@23℃)(dB) | ≤3.8 | ≤6.2 | ≤7 | ≤9.4 | ≤10.2 | ≤12.6 | ≤13.5 | ≤15.8 | ≤16.6 | ≤21 |
| Consistency（dB） | ≤0.3 | ≤0.5 | ≤0.4 | ≤0.6 | ≤0.4 | ≤0.8 | ≤0.6 | ≤1.1 | ≤0.8 | ≤1.5 |
| Extinction?Ratio?(@23℃)(dB) | ≥23 | ≥23 | ≥23 | ≥22 | ≥22 | ≥22 | ≥20 | ≥20 | ≥18 | ≥18 |
| Return?Loss(dB) | ≥50 | |||||||||
| Power?Handling?(mW) | 500?or Specify | |||||||||
| Fiber?Type | PM1310 or PM1550?or Specify | |||||||||
| Connector | LC, FC, SC | |||||||||
| Working?axis | Slow?Axis、Fast?Axis?or Specify | |||||||||
| Fiber Length?tolerance（%） | ±10?or Specify | |||||||||
| Operating?Temperature(℃) | -5~70 | |||||||||
| Storage?Temperature(℃) | -45~85 | |||||||||
Note:
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
Specifications may change without notice.
