Description
Parameters
| Features | Applications |
| Low?Insertion?Loss | Line?Monitoring |
| Wide?Passband | WDM?Network |
| High?Channel?Isolation | Telecommunication |
| High?Stability?and?reliability | Cellular?Application |
| Epoxy?free?on?optical?path | Fiber?Optical?Amplifier?????????? |
| Compact?size | Access?Network |
參數/Parameters | Specifications | Unit | |
工作波長/Operating Wavelength | 1310~1610 | nm | |
通道/Channel | 1270,1290,1310,1330,1350,1370,1390,1410, 1430,1450,1470,1490,1510,1530,1550,1570, | nm | |
通道間隔/Channel Spaceing | 20 | nm | |
帶寬（@-0.5dB）/Channel Passband(@-0.5dB bandwidth) | ±6.5 | nm | |
插入損耗1/Insertion Loss1 | 1270~1570 | ≤2.5 | dB |
隔離度/Isolation | 相鄰/Adjacent | ≥30 | dB |
非相鄰/Non-adjacent | ≥40 | dB | |
溫度相關損耗/Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
溫度偏移/Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
偏振相關損耗/Polarization Dependent Loss | ≤0.15 | dB | |
偏振模色散/Polarization Mode Dispersion | ≤0.2 | ps | |
平坦度/Ripple | ≤0.5 | dB | |
方向性/Directivity | ≥50 | dB | |
回波損耗/Return Loss | ≥45 | dB | |
最大光功率/Maximum Power Handing | 300 | mW | |
工作溫度/Operating Temperature | -10~+70 | ℃ | |
儲存溫度/Storage Temperature | -40~+85 | ℃ | |
光纖類型/Fiber Type | 900um ,G657A1 | / | |
光纖長度/Fiber ? Length | 0.25±0.02（包含連接頭） | m | |
封裝尺寸/Package size | L50×W50×H6.2 | mm | |
*備注/ Notes: 1. 所有插入損耗值都包括連接頭之損耗值。/1. Insertion Loss tested with connector.

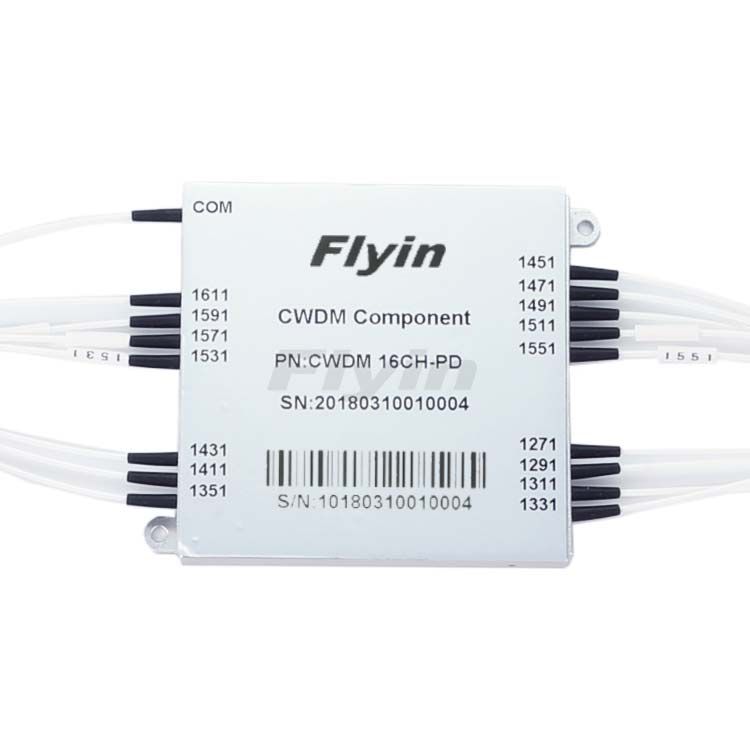

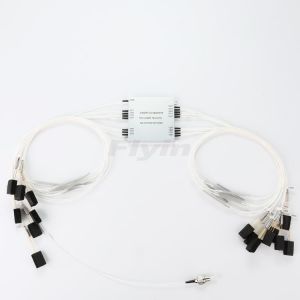

Flyin’s compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using Flyin’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, Flyin's Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better.All Flyin's CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE)
| Features | Applications |
| Low?Insertion?Loss | Line?Monitoring |
| Wide?Passband | WDM?Network |
| High?Channel?Isolation | Telecommunication |
| High?Stability?and?reliability | Cellular?Application |
| Epoxy?free?on?optical?path | Fiber?Optical?Amplifier?????????? |
| Compact?size | Access?Network |
參數/Parameters | Specifications | Unit | |
工作波長/Operating Wavelength | 1310~1610 | nm | |
通道/Channel | 1270,1290,1310,1330,1350,1370,1390,1410, 1430,1450,1470,1490,1510,1530,1550,1570, | nm | |
通道間隔/Channel Spaceing | 20 | nm | |
帶寬（@-0.5dB）/Channel Passband(@-0.5dB bandwidth) | ±6.5 | nm | |
插入損耗1/Insertion Loss1 | 1270~1570 | ≤2.5 | dB |
隔離度/Isolation | 相鄰/Adjacent | ≥30 | dB |
非相鄰/Non-adjacent | ≥40 | dB | |
溫度相關損耗/Insertion Loss Temperature Sensitivity | ≤0.5 | dB | |
溫度偏移/Wavelength Temperature Shifting | ≤0.002 | nm/℃ | |
偏振相關損耗/Polarization Dependent Loss | ≤0.15 | dB | |
偏振模色散/Polarization Mode Dispersion | ≤0.2 | ps | |
平坦度/Ripple | ≤0.5 | dB | |
方向性/Directivity | ≥50 | dB | |
回波損耗/Return Loss | ≥45 | dB | |
最大光功率/Maximum Power Handing | 300 | mW | |
工作溫度/Operating Temperature | -10~+70 | ℃ | |
儲存溫度/Storage Temperature | -40~+85 | ℃ | |
光纖類型/Fiber Type | 900um ,G657A1 | / | |
光纖長度/Fiber ? Length | 0.25±0.02（包含連接頭） | m | |
封裝尺寸/Package size | L50×W50×H6.2 | mm | |
*備注/ Notes: 1. 所有插入損耗值都包括連接頭之損耗值。/1. Insertion Loss tested with connector.
