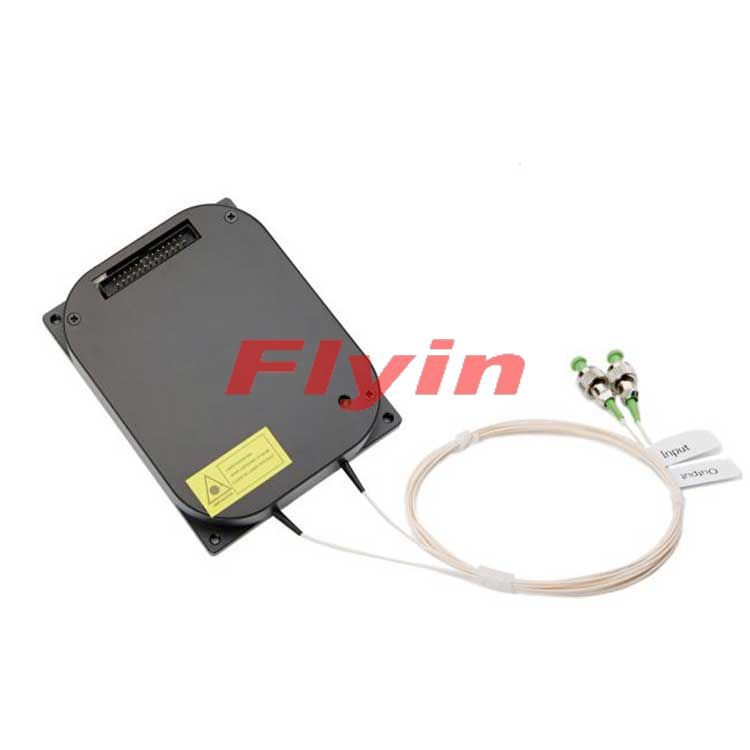

EDFA Module

Low noise figure EDFA module is widely used in optical fiber sensing and communications. It consists of a 980 nm or 1480 nm pump laser to provide energy and operates in AGC, ACC or APC mode. Based on fine temperature control technology inside, it provides excellent temperature characteristics even under harsh working environment at the temperature of -20~60°C.It features high output power, a large gain, and a variable gain range >20dB. It can work across C-band and L-band meeting customers’ diverse needs. It uses DC+5V/GND or DC+3.3V/GND as power supply, user-friendly RS232 serial port as communications interface for easy internal configuration, enabling real-time parameter monitoring, and remote management and control of the line.

Product Description

Low noise figure EDFA module is widely used in optical fiber sensing and communications. It consists of a 980 nm or 1480 nm pump laser to provide energy and operates in AGC, ACC or APC mode. Based on fine temperature control technology inside, it provides excellent temperature characteristics even under harsh working environment at the temperature of -20~60°C.It features high output power, a large gain, and a variable gain range >20dB. It can work across C-band and L-band meeting customers’ diverse needs. It uses DC+5V/GND or DC+3.3V/GND as power supply, user-friendly RS232 serial port as communications interface for easy internal configuration, enabling real-time parameter monitoring, and remote management and control of the line.

?

Features

High output power up to 23dBm

Flexible control mode

High stability and reliability

Operating temp. -20~60°C

Customizable output power and configuration

?

Applications

Long Haul optical fiber communication

Dense Wavelength Division Multiplexing

National defense and military

Optical fiber sensing

Oil and gas field monitoring
