Description
Parameters
Product Configurations：

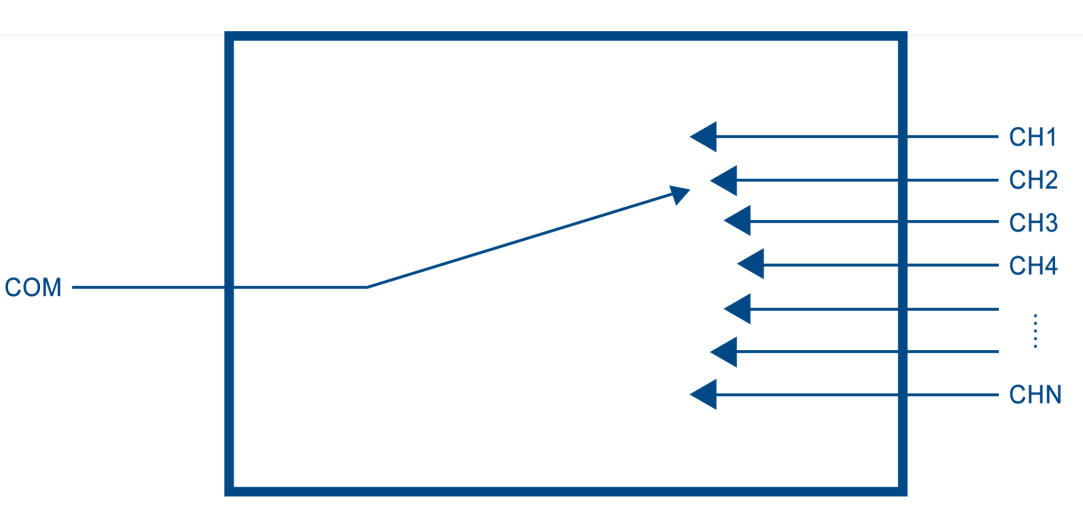

![FEOF@QR]YUYX%@@V[V9CD3V.png](/ueditor/php/upload/image/20190111/1547173467255101.png "1547173467255101.png")

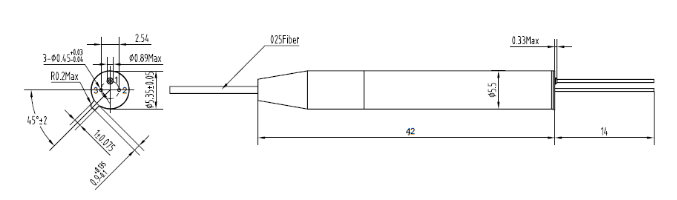

Dimensions Diagram
?
Not marked tolerances according to GB1804-m.
OTHER PACKAGE REQUIREMENT
ESD Packing
?
LABELING SCHEME
6.1 On Connector
NA
6.2 On the device
S/N: xxxxxxxx
6.3 Label Definition
???
?
X=Com, CH1, CH2, CH3……CHN
Performance Specifications
Parameters | Specifications | Unit |
operating wavelength | 1525~1565 | nm |
Insertion Loss | ≤1.2 | dB |
Crosstalk | ≥40 | dB |
PDL | ≤0.15 | dB |
WDL | ≤0.3 | dB |
TDL | ≤0.3 | dB |
Return Loss | ≥40 | dB |
Repeatability | ≤0.1 | dB |
Durability | ≥1×109 | cycle |
Switch Time | ≤30 | ms |
Power Supply | 500 | mW |
Switch Mode | Non-latching | |
Power Supply | ≤58 | V |
Power Consumption | ≤2 | mW |
Fiber Type | 9/125 single mode fiber | |
Fiber Pigtail | 9/125/250um?bare fiber | |
Fiber Length | 1.00±0.05 | m |
Connector | NA | |
Package Dimension | φ5.5×42 | mm |
Operation Temperature | -5 ~ +65 | ℃ |
Storage Temperature | -40 ~ +85 | ℃ |
Operation Humidity | 5 ~ 95 | %RH |
Storage Humidity | 5 ~ 95 | %RH |
Pins
Pin NO. | Property | Note |
1 | GND | |
2 | Anode(+) | Vy |
3 | Anode(+) | Vx |
Revision History
Revision | Notes | Authors | Approval | Date |
Rev A0 | New release | Virgil | Ash Chan | 2018-12-17 |

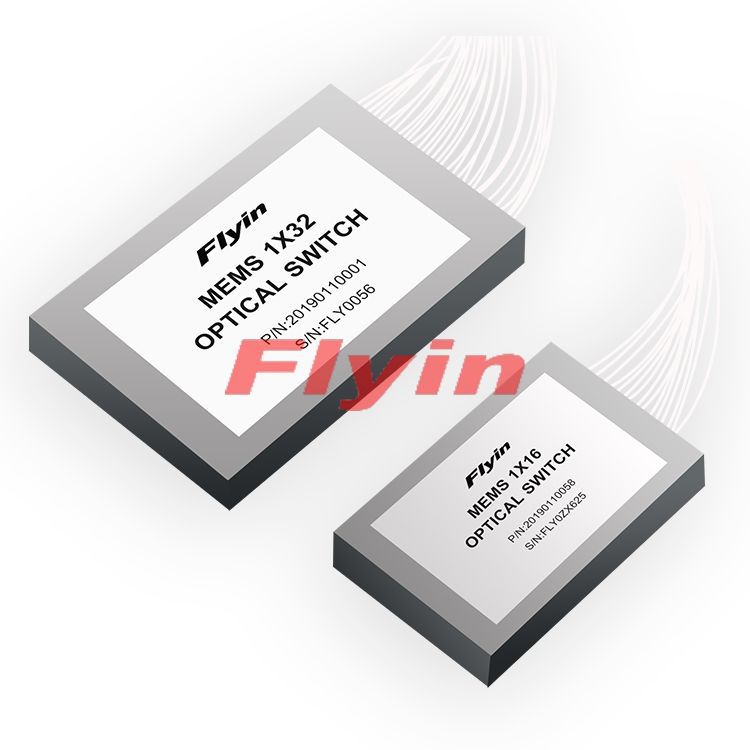

MEMS OSW is based on micro-electro-mechanical system (MEMS) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of MEMS chip. MEMS OSW is mainly used in optical cross and connection (OXC) system, optical add/drop system, measure instrument system and optical signal monitoring system.The products are Telcordia GR-1073-CORE qualified, and RoHS compliant.
Product Configurations：
Dimensions Diagram
?
Not marked tolerances according to GB1804-m.
OTHER PACKAGE REQUIREMENT
ESD Packing
?
LABELING SCHEME
6.1 On Connector
NA
6.2 On the device
S/N: xxxxxxxx
6.3 Label Definition
???
?
X=Com, CH1, CH2, CH3……CHN
Performance Specifications
Parameters | Specifications | Unit |
operating wavelength | 1525~1565 | nm |
Insertion Loss | ≤1.2 | dB |
Crosstalk | ≥40 | dB |
PDL | ≤0.15 | dB |
WDL | ≤0.3 | dB |
TDL | ≤0.3 | dB |
Return Loss | ≥40 | dB |
Repeatability | ≤0.1 | dB |
Durability | ≥1×109 | cycle |
Switch Time | ≤30 | ms |
Power Supply | 500 | mW |
Switch Mode | Non-latching | |
Power Supply | ≤58 | V |
Power Consumption | ≤2 | mW |
Fiber Type | 9/125 single mode fiber | |
Fiber Pigtail | 9/125/250um?bare fiber | |
Fiber Length | 1.00±0.05 | m |
Connector | NA | |
Package Dimension | φ5.5×42 | mm |
Operation Temperature | -5 ~ +65 | ℃ |
Storage Temperature | -40 ~ +85 | ℃ |
Operation Humidity | 5 ~ 95 | %RH |
Storage Humidity | 5 ~ 95 | %RH |
Pins
Pin NO. | Property | Note |
1 | GND | |
2 | Anode(+) | Vy |
3 | Anode(+) | Vx |
Revision History
Revision | Notes | Authors | Approval | Date |
Rev A0 | New release | Virgil | Ash Chan | 2018-12-17 |
