Description
Parameters
| Features | Applications |
| G.652 optical fiber C-band100% Slope compensation(Standard) | Dispersion control |
| Low insertion loss | SDH high speed optical transmission system |
| Low Polarization mode dispersion | DWDM optical transmission system |
| DWDM system broad-band dispersion compensation | CATV long haul optical transmission system. |
| Performance compatible with | G.652fiber long haul system |
| Telcordia GR-2854-CORE | |
| Various Mechanical Structure, connectors are provided | |
| Recommend operation with Flyin | |
| Mid-stage optical amplifier to get excellent character |

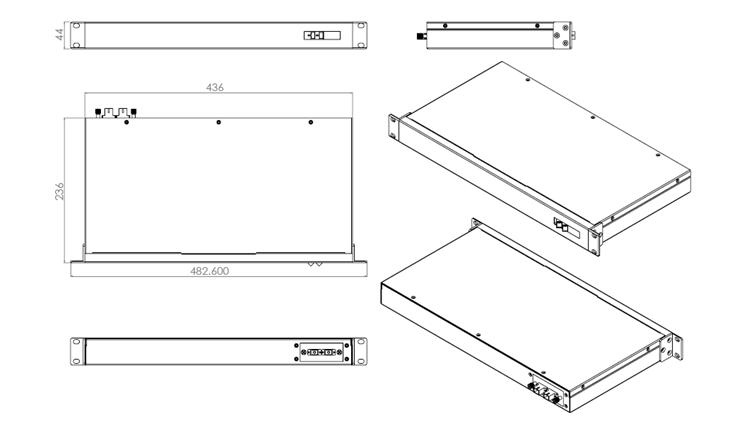

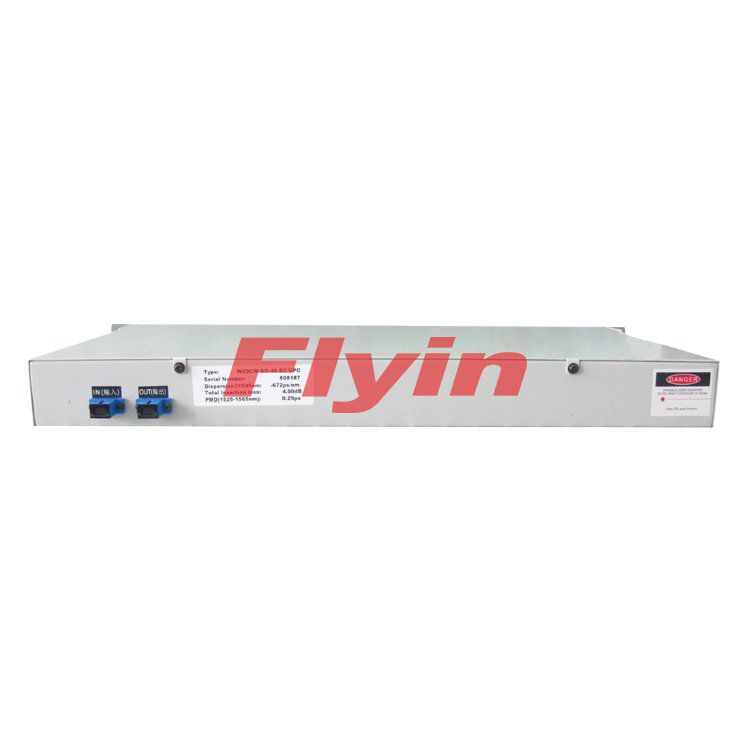

Mechanical Dimension(483*236*44mm)
| Compensation Distance (km) | Dispersion (ps/nm) | Dispersion Slope(ps/nm*nm) PMD (ps) | Insertion Loss (dB) | PMD (ps) | PDL(dB) | ||
| 20 | -340±3% | -0.66 | 0.98 | -1.30 | ≤2.9 | ≤0.6 | ≤0.1 |
| 40 | -680±3% | -1.33 | -1.95 | -2.60 | ≤4.8 | ≤0.8 | ≤0.1 |
| 60 | -1020±3% | -2.00 | 2.93 | -3.95 | ≤6.8 | ≤1.0 | ≤0.1 |
| 80 | -1360±3% | -2.67 | -3.90 | -5.20 | ≤8.7 | ≤1.2 | ≤0.1 |
| 100 | -1700±3% | -3.30 | -4.87 | -6.50 | ≤10.7 | ≤1.3 | ≤0.1 |
| 120 | -2040±3% | -4.10 | -5.97 | -7.80 | ≤12.9 | ≤1.4 | ≤0.1 |
| 140 | -2380±4% | -4.8 | -6.11 | -9.12 | ≤14.8 | ≤1.5 | ≤0.1 |
| 160 | -2720±4% | -5.20 | -7.36 | -10.40 | ≤16.8 | ≤1.6 | ≤0.1 |
1、Insertion Loss is the MAX in operation wavelength（1525 nm -1565 nm）
2、The above-mentioned data is measured on the 1550 nm wavelength
3、PMD is the mean difference Grouping Delay for the measuring of Jones matrix method.
4、OEM and customize character is available
| Parameter | Symbol | Min | Typ | Max | Unit |
| Operating temperature | Tw | -5 | --- | 60 | ℃ |
| Storage Temperature | Ts | -40 | --- | 80 | ℃ |
| Humidity | --- | 10 | --- | 85 | % |
DCM Dispersion Compensator has the capability of slope compensation which can supply the broad-band dispersion slope compensation for SMF-28 fiber (G.652) in whole C-band to optimize the system residual dispersion. With the mature and reliable optical fiber processing, the performance of optical transmission system can be sharply improved. The dispersion range of 1550nm wavelength can achieve -10 ~ -2100ps/nm. Special requirements in central wavelength and dispersion can be provided.
| Features | Applications |
| G.652 optical fiber C-band100% Slope compensation(Standard) | Dispersion control |
| Low insertion loss | SDH high speed optical transmission system |
| Low Polarization mode dispersion | DWDM optical transmission system |
| DWDM system broad-band dispersion compensation | CATV long haul optical transmission system. |
| Performance compatible with | G.652fiber long haul system |
| Telcordia GR-2854-CORE | |
| Various Mechanical Structure, connectors are provided | |
| Recommend operation with Flyin | |
| Mid-stage optical amplifier to get excellent character |
Mechanical Dimension(483*236*44mm)
| Compensation Distance (km) | Dispersion (ps/nm) | Dispersion Slope(ps/nm*nm) PMD (ps) | Insertion Loss (dB) | PMD (ps) | PDL(dB) | ||
| 20 | -340±3% | -0.66 | 0.98 | -1.30 | ≤2.9 | ≤0.6 | ≤0.1 |
| 40 | -680±3% | -1.33 | -1.95 | -2.60 | ≤4.8 | ≤0.8 | ≤0.1 |
| 60 | -1020±3% | -2.00 | 2.93 | -3.95 | ≤6.8 | ≤1.0 | ≤0.1 |
| 80 | -1360±3% | -2.67 | -3.90 | -5.20 | ≤8.7 | ≤1.2 | ≤0.1 |
| 100 | -1700±3% | -3.30 | -4.87 | -6.50 | ≤10.7 | ≤1.3 | ≤0.1 |
| 120 | -2040±3% | -4.10 | -5.97 | -7.80 | ≤12.9 | ≤1.4 | ≤0.1 |
| 140 | -2380±4% | -4.8 | -6.11 | -9.12 | ≤14.8 | ≤1.5 | ≤0.1 |
| 160 | -2720±4% | -5.20 | -7.36 | -10.40 | ≤16.8 | ≤1.6 | ≤0.1 |
1、Insertion Loss is the MAX in operation wavelength（1525 nm -1565 nm）
2、The above-mentioned data is measured on the 1550 nm wavelength
3、PMD is the mean difference Grouping Delay for the measuring of Jones matrix method.
4、OEM and customize character is available
| Parameter | Symbol | Min | Typ | Max | Unit |
| Operating temperature | Tw | -5 | --- | 60 | ℃ |
| Storage Temperature | Ts | -40 | --- | 80 | ℃ |
| Humidity | --- | 10 | --- | 85 | % |
