Description
Parameters
| Features | Applications |
| Shorten the communication interrupt time, improve the efficiency of maintenance, automatic recovery communication very short time | |
| Reduce the line fault caused by all kinds of losses | |
| Increase the reliability of the transmission network, improve the service quality of the operators | |
| On the premise of guarantee the business without blocking any scheduling the work for routing (line maintenance, cut over scheduling) | |
| Real-time monitoring of the main case of fiber optical power | |
| Support of the whole system and process control, convenient for management, maintenance of equipment | |
| With transparent transmission |

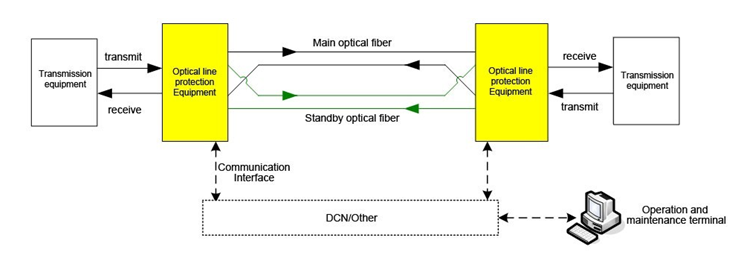

Here is the diagram of optical line protection system:

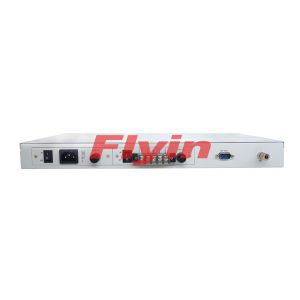

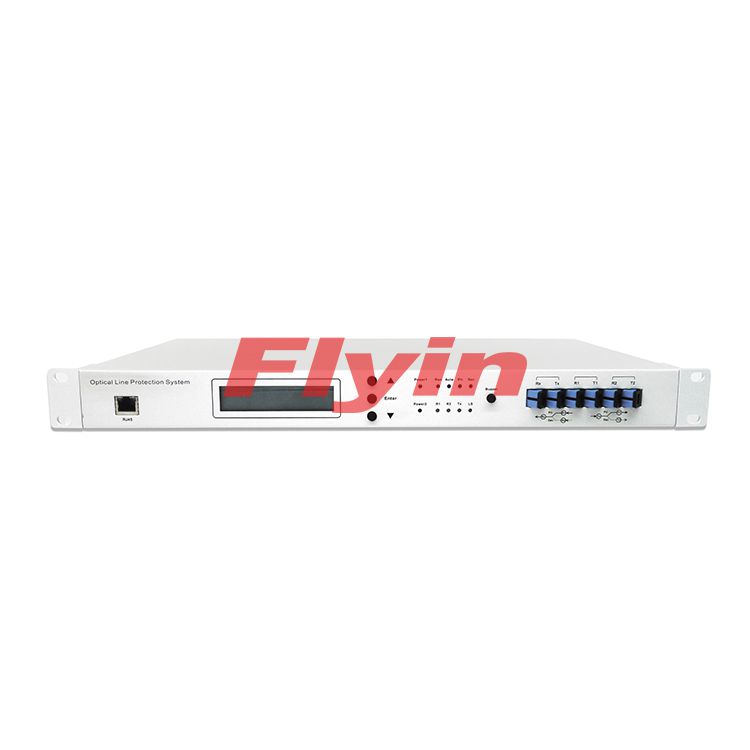

Optical Line Protection (OLP) Device
1:1 protection
The light path of protection system
1+1 protection
The light path of protection system
1-1 protection
| Parameter | 1:1Protection | 1+1Protection | 1-1Protection |
| Working Wavelength(nm) | 1310±50nm和1550±50nm | ||
| Monitoring Power Range(dBm) | ＋23～-50 | ||
| Monitoring power accuracy(dB) | ±0.25 | ||
| Monitoring power resolution(dB) | ±0.01 | ||
| Return loss(dB) | ≥55 | ||
| PDL(dB) | ≤0.05 | ||
| WDL(dB) | ≤0.1 | ||
| Insertion loss(dB) | dawn<1.2 receiving<1.2 | dawn<4 receiving<1.2 | <1.2 |
| Switch time(ms) | <35 | <15 | <15 |
| Durability(Life)(times) | >10^7 | ||
| Operating temperature（℃） | -10～+60℃ | ||
| Storage temperature（℃） | -20～+75℃ | ||
| Power supply （V） | DC(36-72) and AC(85-264)V/50~60Hz, dual power supply | ||
| Power-down Condition | hold in working path or switch to backup path | ||
| Optical connectors | SC/PC(Optional) | ||
| Dimension | Standard 19' 1U | ||
| Rackmount | Model | |||
| 1U | OLP-1U-1:1 | OLP-1U-1+1 | OLP-1U-1-1 | |
| 4U | Machine frame | OLP-4U | ||
| Insert disc | OLP-M-1:1 | OLP-M-1+1 | OLP-M-1-1 | |
| 4U OLP equipment consists of frame(including power supply, master control module) and tray. | ||||
Optical line protection system is combined of OLP-Optical Line Protection and operation maintenance terminal. It can realize optical power monitoring、optical line auto-switching and network management etc. In optical communication network, OLP monitors optical power of optical fiber and standby optical fiber at real time. In case the current optical power of optical fiber is less than pre-set switching threshold value, then alarm is on and it would switch to standby optical fiber automatically to protect optical transmission system line. OLP can provide a protection scheme for all routes and main lines easily with low cost, can protect all networks which needs optical line switching, all these above can make an optical communication network with no-block、high reliability、safety and high anti-disaster strength.
| Features | Applications |
| Shorten the communication interrupt time, improve the efficiency of maintenance, automatic recovery communication very short time | |
| Reduce the line fault caused by all kinds of losses | |
| Increase the reliability of the transmission network, improve the service quality of the operators | |
| On the premise of guarantee the business without blocking any scheduling the work for routing (line maintenance, cut over scheduling) | |
| Real-time monitoring of the main case of fiber optical power | |
| Support of the whole system and process control, convenient for management, maintenance of equipment | |
| With transparent transmission |

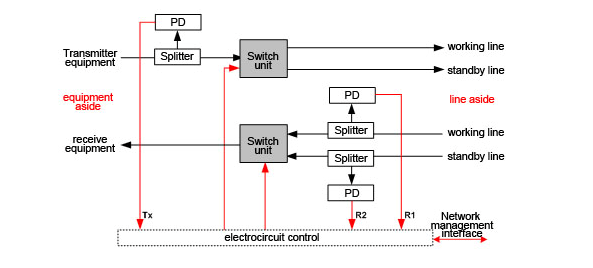

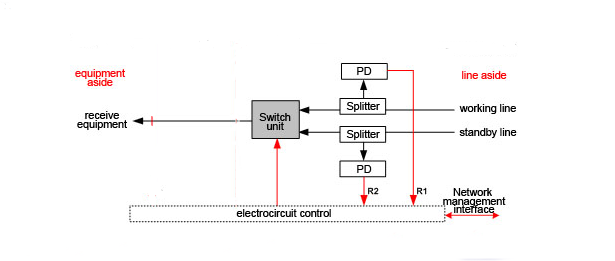

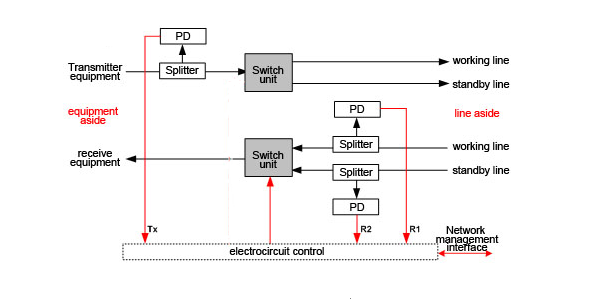

Here is the diagram of optical line protection system:
Optical Line Protection (OLP) Device
1:1 protection
The light path of protection system
1+1 protection
The light path of protection system
1-1 protection
| Parameter | 1:1Protection | 1+1Protection | 1-1Protection |
| Working Wavelength(nm) | 1310±50nm和1550±50nm | ||
| Monitoring Power Range(dBm) | ＋23～-50 | ||
| Monitoring power accuracy(dB) | ±0.25 | ||
| Monitoring power resolution(dB) | ±0.01 | ||
| Return loss(dB) | ≥55 | ||
| PDL(dB) | ≤0.05 | ||
| WDL(dB) | ≤0.1 | ||
| Insertion loss(dB) | dawn<1.2 receiving<1.2 | dawn<4 receiving<1.2 | <1.2 |
| Switch time(ms) | <35 | <15 | <15 |
| Durability(Life)(times) | >10^7 | ||
| Operating temperature（℃） | -10～+60℃ | ||
| Storage temperature（℃） | -20～+75℃ | ||
| Power supply （V） | DC(36-72) and AC(85-264)V/50~60Hz, dual power supply | ||
| Power-down Condition | hold in working path or switch to backup path | ||
| Optical connectors | SC/PC(Optional) | ||
| Dimension | Standard 19' 1U | ||
| Rackmount | Model | |||
| 1U | OLP-1U-1:1 | OLP-1U-1+1 | OLP-1U-1-1 | |
| 4U | Machine frame | OLP-4U | ||
| Insert disc | OLP-M-1:1 | OLP-M-1+1 | OLP-M-1-1 | |
| 4U OLP equipment consists of frame(including power supply, master control module) and tray. | ||||
