Description
Parameters
| Features | Applications |
| Low Noise Figure: Typical 4.5 | Pre-Amplifier |
| High Flatness: Typical 1dB | Online Amplifier |
| Cover Whole C-Band: Carrier 40 or 80 CHs | Booster Amplifier |
| Redundancy hot swap power module: 110/220VAC and 48VDC can plug Mix | DWDM Optical System |
| Perfect Network Interface: Ethernet, RS-485 and RS-232 port | |
| Support Telnet Interface and SNMP network management | |
| Gain can be adjustable by network and manual | |
| High precise AGC and ATC circuit | |
| High saturation output power | |
| Flexible Mechanics and circuit structure(Module,1U rack and Gain Block) | |
| Compatible with Telecordia GR1312-CORE |

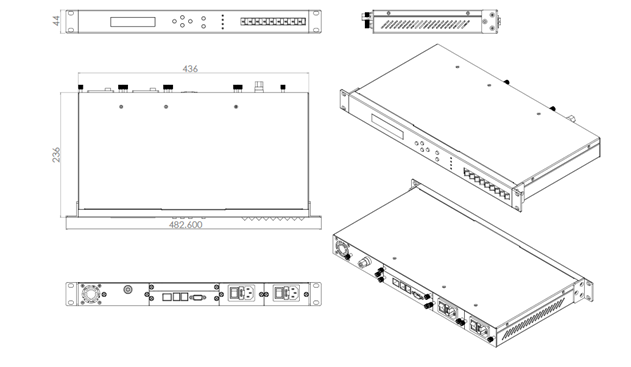

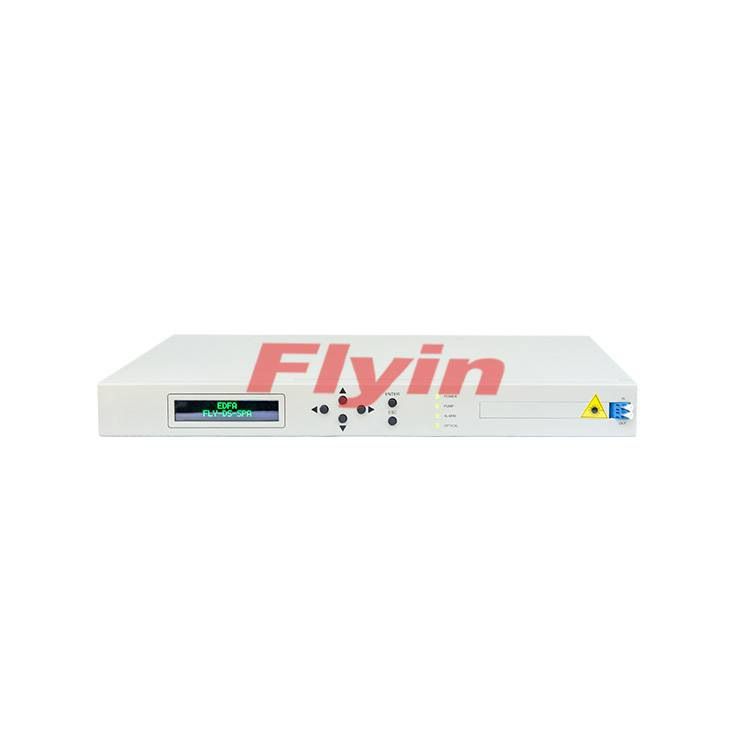

Mechanical Structure
????483*236*44(mm)
| Parameter | Symbol | Min | Typ | Max | Unit |
| Wavelength | λC | 1529 | 1550 | 1564 | nm |
| Saturation output power(1) | Po | - | - | 20 | dBm |
| Input Power | Pi | -35 | - | +6 | dBm |
| Gain | G | - | 20 | - | dB |
| Flatness | FL | 1.0 | 1.5 | dB | |
| Noise Figure(2) | NF | - | 4.5 | - | dB |
| Output power stability | ΔPo | - | ±0.05 | ±0.1 | dB |
| Return Loss | RL | - | - | -45 | dB |
| PDG | PDG | - | - | 0.3 | dB |
| PMD | PMD | - | - | 0.5 | ps |
1、Optional
2、Test at 0dBm input
| Parameter | Symbol | Min | Typ | Max | Unit |
| Voltage Supply | Vps | 85/170 | 110/220 | 132/264 | VAC |
| Consumption | P | - | - | 18 | W |
1、10VAC，220VAC and -48VDC is optional
2、Actual consumption depend on the output power and environment temperature
| Parameter | Symbol | Min | Typ | Max | Unit |
| Operating Temperature | Tw | -5 | - | 60 | ℃ |
| Storage Temperature | Ts | -40 | - | 80 | ℃ |
| Humidity | - | 10 | - | 85 | % |
1、Non-condensing
FLY 1000R Series Optical Transform Unit is a high performance, low-power optical transmission system unit, mainly for optical regeneration, re-amplifying, re-shaping the signals in the transmission process. It can save optical fiber resources and networking cost effectively, and solves the problem that the transmission distance is too long to transmit. With advantages of small volume optical signal, economy and safety, convenient construction and etc, it is widely used in various optical transmission fields and long-distance trunk transmission.
| Features | Applications |
| Low Noise Figure: Typical 4.5 | Pre-Amplifier |
| High Flatness: Typical 1dB | Online Amplifier |
| Cover Whole C-Band: Carrier 40 or 80 CHs | Booster Amplifier |
| Redundancy hot swap power module: 110/220VAC and 48VDC can plug Mix | DWDM Optical System |
| Perfect Network Interface: Ethernet, RS-485 and RS-232 port | |
| Support Telnet Interface and SNMP network management | |
| Gain can be adjustable by network and manual | |
| High precise AGC and ATC circuit | |
| High saturation output power | |
| Flexible Mechanics and circuit structure(Module,1U rack and Gain Block) | |
| Compatible with Telecordia GR1312-CORE |
Mechanical Structure
????483*236*44(mm)
| Parameter | Symbol | Min | Typ | Max | Unit |
| Wavelength | λC | 1529 | 1550 | 1564 | nm |
| Saturation output power(1) | Po | - | - | 20 | dBm |
| Input Power | Pi | -35 | - | +6 | dBm |
| Gain | G | - | 20 | - | dB |
| Flatness | FL | 1.0 | 1.5 | dB | |
| Noise Figure(2) | NF | - | 4.5 | - | dB |
| Output power stability | ΔPo | - | ±0.05 | ±0.1 | dB |
| Return Loss | RL | - | - | -45 | dB |
| PDG | PDG | - | - | 0.3 | dB |
| PMD | PMD | - | - | 0.5 | ps |
1、Optional
2、Test at 0dBm input
| Parameter | Symbol | Min | Typ | Max | Unit |
| Voltage Supply | Vps | 85/170 | 110/220 | 132/264 | VAC |
| Consumption | P | - | - | 18 | W |
1、10VAC，220VAC and -48VDC is optional
2、Actual consumption depend on the output power and environment temperature
| Parameter | Symbol | Min | Typ | Max | Unit |
| Operating Temperature | Tw | -5 | - | 60 | ℃ |
| Storage Temperature | Ts | -40 | - | 80 | ℃ |
| Humidity | - | 10 | - | 85 | % |
1、Non-condensing
